دیتاشیت ADP3339AKCZ-2.5-R7

ADP3339

مشخصات دیتاشیت

نام دیتاشیت ADP3339
حجم فایل 251.644 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

دانلود دیتاشیت ADP3339

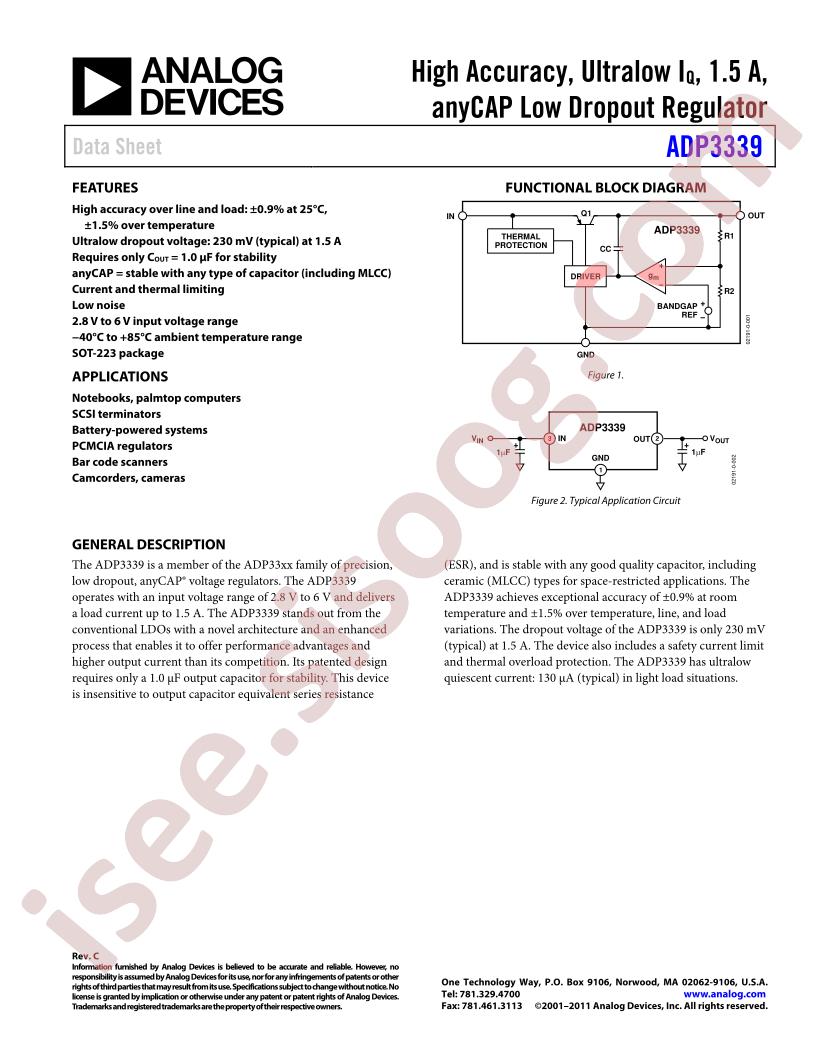

ADP3339 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: Analog Devices ADP3339AKCZ-2.5-R7
  • Output Current: 1.5A
  • Output Voltage: 2.5V~2.5V
  • Dropout Voltage: 0.48V@(1.5A)
  • Output Polarity: positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 6V
  • Operating Temperature: -40°C~+85°C@(Ta)
  • Quiescent Current (Ground Current): 200uA
  • Package: SOT-223
  • Manufacturer: Analog Devices
  • Series: anyCAP®
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Output Configuration: Positive
  • Output Type: Fixed
  • Number of Regulators: 1
  • Voltage - Input (Max): 6V
  • Voltage - Output (Min/Fixed): 2.5V
  • Voltage - Output (Max): -
  • Voltage Dropout (Max): 0.48V @ 1.5A
  • Current - Output: 1.5A
  • Current - Quiescent (Iq): 200µA
  • Current - Supply (Max): 40mA
  • PSRR: -
  • Control Features: -
  • Protection Features: Over Current, Over Temperature
  • Mounting Type: Surface Mount
  • Package / Case: TO-261-4, TO-261AA
  • Supplier Device Package: SOT-223-3
  • Base Part Number: ADP3339
  • detail: Linear Voltage Regulator IC 1 Output 1.5A SOT-223-3
