TPIC2050RDFDRG4 دیتاشیت

TPIC2050RDFDRG4

مشخصات دیتاشیت

نام دیتاشیت TPIC2050RDFDRG4
حجم فایل 100.196 کیلوبایت
نوع فایل pdf
تعداد صفحات 66

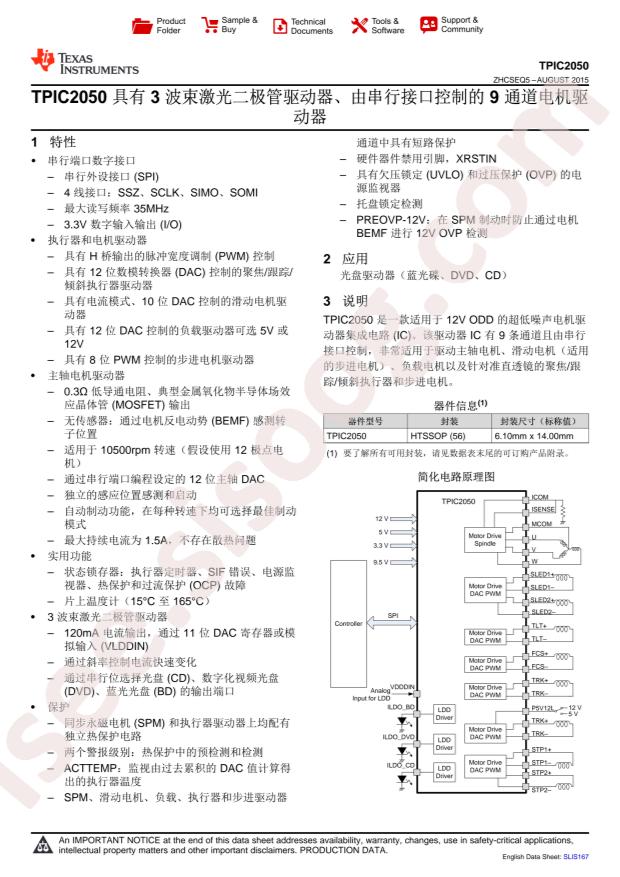

مشاهده دیتاشیت TPIC2050RDFDRG4

دانلود دیتاشیت

سایر مستندات

TPIC2050 Datasheet 67 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Motor Driver ICs
  • Datasheet: Texas Instruments TPIC2050RDFDRG4
  • Package: TSSOP-56-EP-6.1mm
  • Manufacturer: Texas Instruments
  • Series: -
  • Operating Temperature: -20°C ~ 75°C (TA)
  • Technology: Power MOSFET
  • Package / Case: 56-TFSOP (0.240", 6.10mm Width) Exposed Pad
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Current - Output: 800mA, 1.7A
  • Part Status: Active
  • Base Part Number: TPIC20
  • Mounting Type: Surface Mount
  • Motor Type - Stepper: -
  • Applications: Media Player
  • Motor Type - AC, DC: Brushless DC (BLDC), Brushed DC
  • Voltage - Supply: 3.3V, 5V, 9.5V, 12V
  • Step Resolution: -
  • Packaging: Digi-Reel®
  • Output Configuration: Half Bridge (19)
  • Interface: SPI
  • Voltage - Load: 5V, 12V
  • Supplier Device Package: 56-HTSSOP
  • detail: Motor Driver Power MOSFET SPI 56-HTSSOP
