ADP5310AREZN-255R7 دیتاشیت

مشخصات دیتاشیت

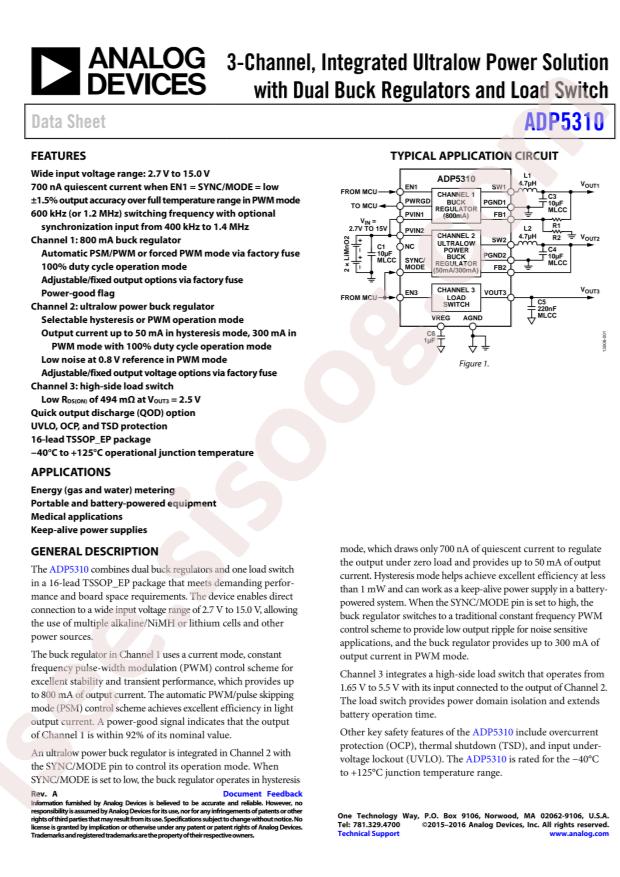

مشاهده دیتاشیت ADP5310AREZN-255R7	دانلود دیتاشیت

ADP5310 28 pages

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Step-down type
Topology: Step-down
Datasheet: Analog Devices ADP5310AREZN-255R7
Output Type: 可调和固定
Input Voltage: 2.7V~15V
Output Voltage: 0.8V~5V
Number of Outputs: 3
Switching Frequency: 1.4MHz
Output Current (Max): 50mA;300mA;800mA
Operating Temperature: -40°C~+125°C@(TJ)
Synchronous Rectification: Yes
Package: TSSOP-16-EP
Manufacturer: Analog Devices
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Output Configuration: Positive
Voltage - Input (Min): 2.7V
Voltage - Input (Max): 15V
Voltage - Output (Min/Fixed): 0.8V (2.55V)
Voltage - Output (Max): 5V
Current - Output: 50mA, 300mA, 800mA
Frequency - Switching: 400kHz ~ 1.4MHz
Synchronous Rectifier: Yes
Mounting Type: Surface Mount
Package / Case: 16-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package: 16-TSSOP-EP
Base Part Number: ADP5310
detail: Buck Switching Regulator IC Positive Adjustable (Fixed) 0.8V (2.55V) 3 Output 50mA, 300mA, 800mA 16-TSSOP (0.173", 4.40mm Width) Exposed Pad
