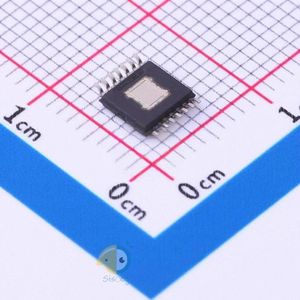

TPS54386TPWPRQ1 دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت TPS54386TPWPRQ1	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Step-down type
Topology: Step-down
Datasheet: Texas Instruments TPS54386TPWPRQ1
Output Type: Adjustable
Input Voltage: 4.5V~28V
Output Voltage: 0.8V~25.2V
Number of Outputs: 2
Switching Frequency: 630kHz
Output Current (Max): 3A
Operating Temperature: -40°C~+125°C@(TJ)
Synchronous Rectification: NO
Package: TSSOP-14-EP
Manufacturer: Texas Instruments
Series: Automotive, AEC-Q100
Voltage - Input (Min): 4.5V
Base Part Number: TPS543
Current - Output: 3A
Frequency - Switching: 630kHz
Part Status: Active
Voltage - Input (Max): 28V
Mounting Type: Surface Mount
Supplier Device Package: 14-HTSSOP
Voltage - Output (Min/Fixed): 0.8V
Package / Case: 14-PowerTSSOP (0.173", 4.40mm Width)
Voltage - Output (Max): 25.2V
Packaging: Digi-Reel®
Output Configuration: Positive
Synchronous Rectifier: No
detail: Buck Switching Regulator IC Positive Adjustable 0.8V 2 Output 3A 14-PowerTSSOP (0.173", 4.40mm Width)
