دیتاشیت ADP3654ARDZ-RL

ADP3654

مشخصات دیتاشیت

نام دیتاشیت ADP3654
حجم فایل 320.107 کیلوبایت
نوع فایل pdf
تعداد صفحات 13

دانلود دیتاشیت ADP3654

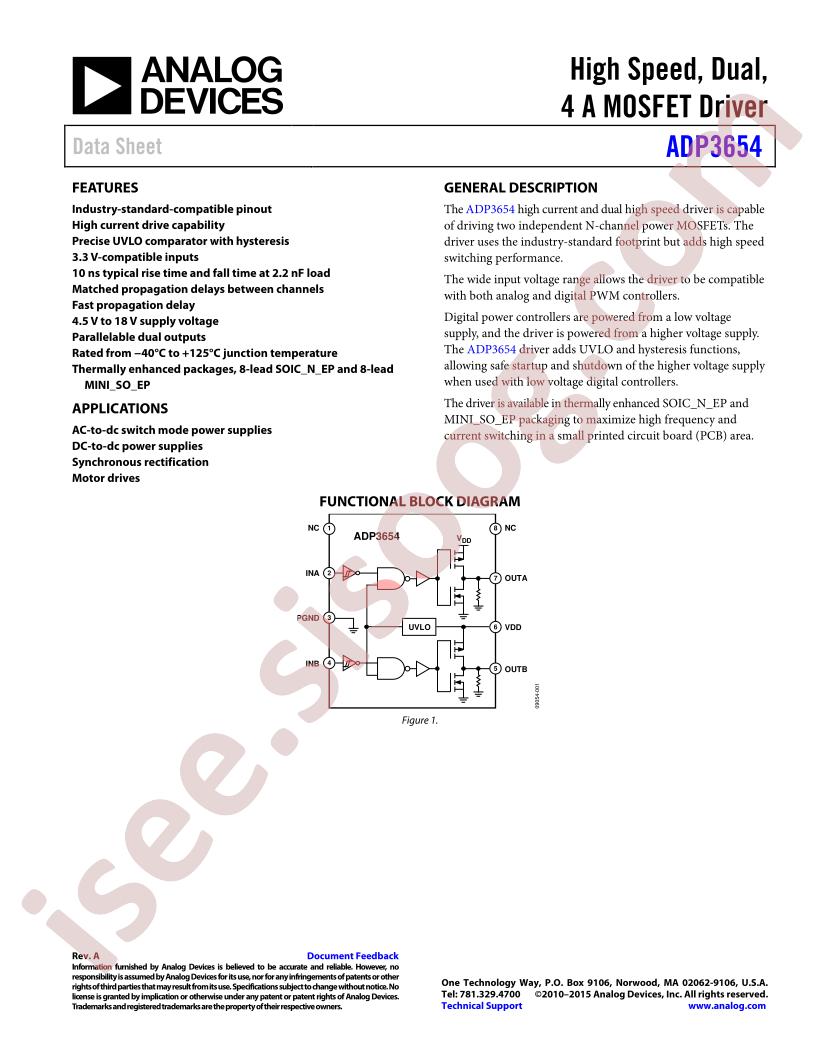

ADP3654 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Analog Devices ADP3654ARDZ-RL
  • Fall Time: 10ns
  • Load Type: MOSFET
  • Rise Time: 10ns
  • Supply Voltage: 4.5V~18V
  • Number of Drivers: 2
  • Driven Configuration: Low Side
  • Operating Temperature: -40°C~+125°C@(Tj)
  • Peak Output Current(sink): 4A
  • Peak Output Current(source): 4A

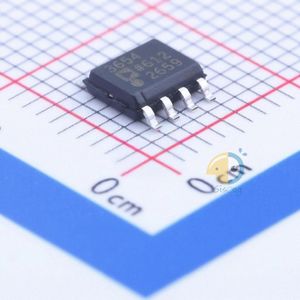

  • Package: SOP-8
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Channel Type: Independent
  • Gate Type: N-Channel MOSFET
  • Voltage - Supply: 4.5V ~ 18V
  • Logic Voltage - VIL, VIH: 0.8V, 2V
  • Current - Peak Output (Source, Sink): 4A, 4A
  • Input Type: Inverting
  • Rise / Fall Time (Typ): 10ns, 10ns
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC (0.154", 3.90mm Width) Exposed Pad
  • Supplier Device Package: 8-SOIC-EP
  • Base Part Number: ADP3654
  • detail: Low-Side Gate Driver IC Inverting 8-SOIC-EP
