- دیتاشیت ADP5301ACBZ-3-R7
دیتاشیت ADP5301ACBZ-3-R7
مشخصات دیتاشیت
| نام دیتاشیت | ADP5301 Datasheet |
|---|---|
| حجم فایل | 760.93 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 21 |
دانلود دیتاشیت ADP5301 Datasheet |

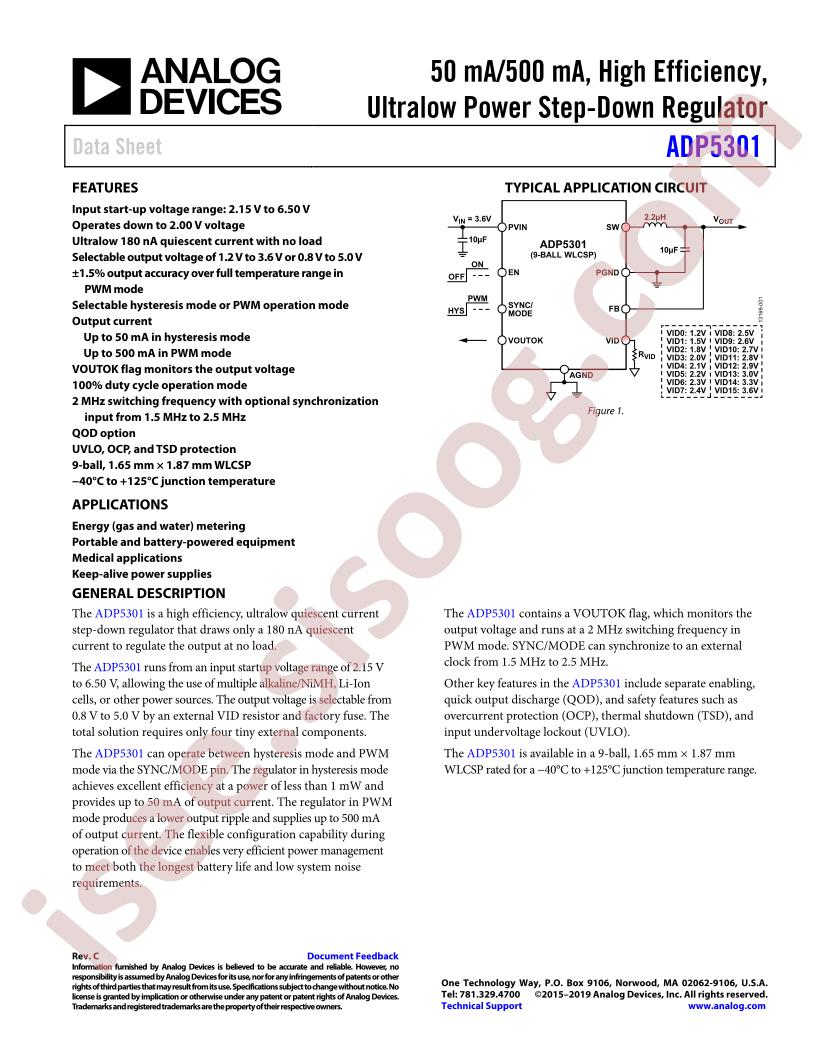

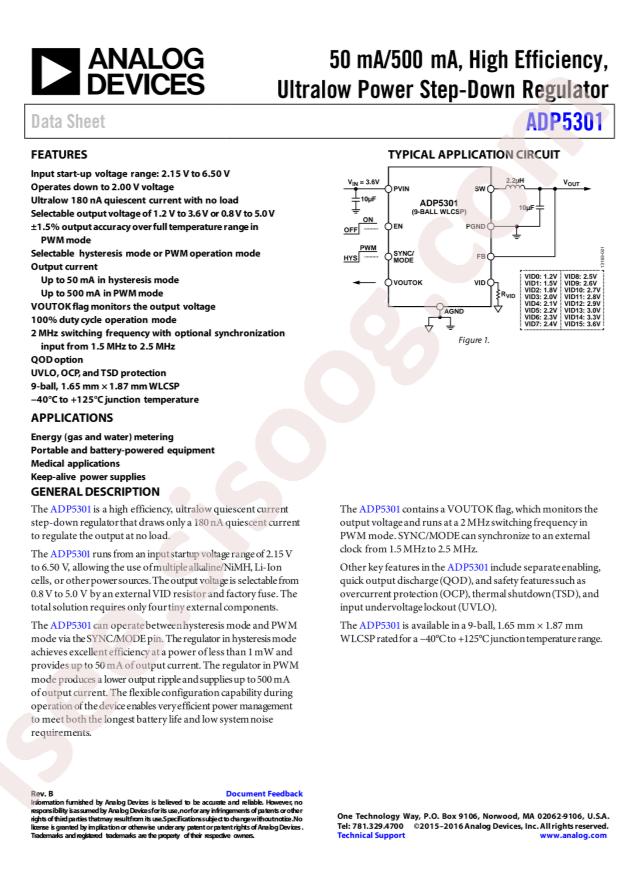

ADP5301 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: Step-down type
- Topology: Step-down
- Datasheet: Analog Devices ADP5301ACBZ-3-R7
- Output Type: Adjustable
- Input Voltage: 2.15V~6.5V
- Output Voltage: 0.8V~5V
- Number of Outputs: 1
- Switching Frequency: 2MHz
- Output Current (Max): 50mA;500mA
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: Yes
- Package: WLCSP-9
- Manufacturer: Analog Devices
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Output Configuration: Positive
- Voltage - Input (Min): 2.15V
- Voltage - Input (Max): 6.5V
- Voltage - Output (Min/Fixed): 0.8V
- Voltage - Output (Max): 5V
- Current - Output: 50mA, 500mA
- Frequency - Switching: 2MHz
- Synchronous Rectifier: Yes
- Mounting Type: Surface Mount
- Package / Case: 9-WFBGA, WLCSP
- Supplier Device Package: 9-WLCSP (1.87x1.65)
- Base Part Number: ADP5301
- detail: Buck Switching Regulator IC Positive Programmable 0.8V 1 Output 50mA, 500mA 9-WFBGA, WLCSP
