دیتاشیت ADP3303ARZ-5-REEL
مشخصات دیتاشیت
| نام دیتاشیت | ADP3303 |
|---|---|
| حجم فایل | 318.475 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 16 |
دانلود دیتاشیت ADP3303 |

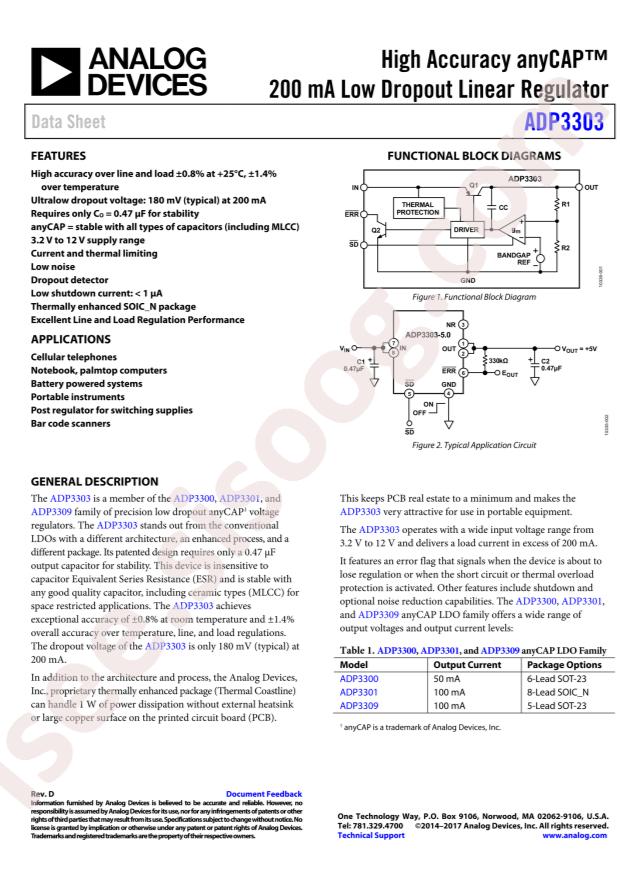

ADP3303 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Analog Devices ADP3303ARZ-5-REEL
- Output Current: 200mA
- Output Voltage: 5V
- Dropout Voltage: 0.4V@(200mA)
- Output Polarity: positive
- Number of Outputs: 1
- Maximum Input Voltage: 12V
- Operating Temperature: -20°C~+85°C
- Quiescent Current (Ground Current): 400uA
- Package: SOIC-8
- Manufacturer: Analog Devices
- Series: anyCAP®
- Packaging: Cut Tape (CT)
- Part Status: Active
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 12V
- Voltage - Output (Min/Fixed): 5V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.4V @ 200mA
- Current - Output: 200mA
- Current - Quiescent (Iq): 400µA
- Current - Supply (Max): 4mA
- PSRR: -
- Control Features: Enable
- Protection Features: Over Temperature
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 8-SOIC
- Base Part Number: ADP3303
- detail: Linear Voltage Regulator IC 1 Output 200mA 8-SOIC
