ADG1422BRMZ-REEL7 دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت ADG1422BRMZ-REEL7	دانلود دیتاشیت

RoHS: true
Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers

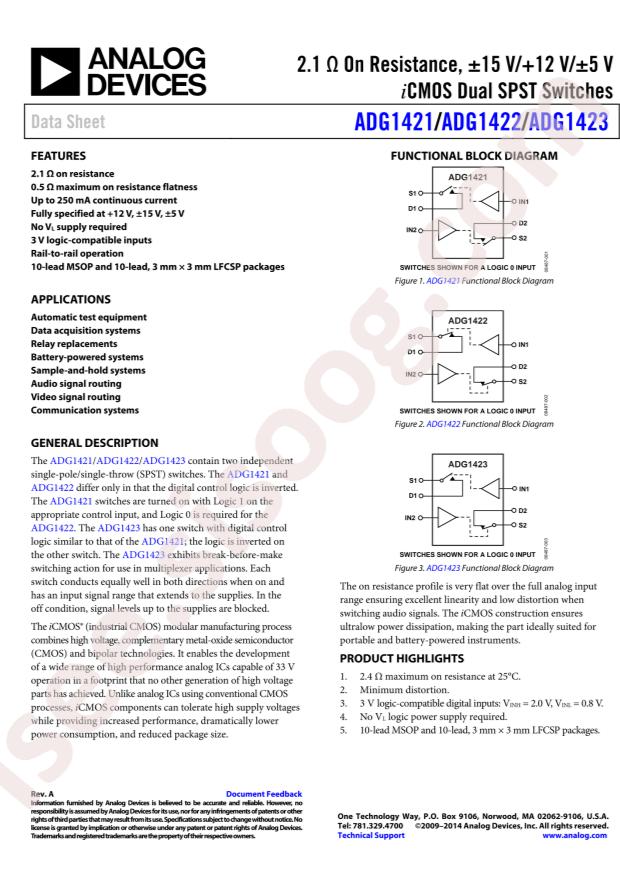

Datasheet: Analog Devices ADG1422BRMZ-REEL7
Turn-on time: 145ns
Turn-off time: 145ns
Supply Voltage: 5V~16.5V
Switch Circuit: SPST(SPST)-Normally closed
Number of Channels: 2
On-State Resistance (Max): 2.4Ω
Package: MSOP-10
Manufacturer: Analog Devices
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Multiplexer/Demultiplexer Circuit: 1:1
Number of Circuits: 2
Channel-to-Channel Matching (ΔRon): 20mOhm
Voltage - Supply, Single (V+): 5V ~ 16.5V
Voltage - Supply, Dual (V±): ±4.5V ~ 16.5V
Switch Time (Ton, Toff) (Max): 145ns, 145ns
-3db Bandwidth: 180MHz
Charge Injection: -5pC
Channel Capacitance (CS(off), CD(off)): 18pF, 22pF
Current - Leakage (IS(off)) (Max): 500pA
Crosstalk: -74dB @ 1MHz
Operating Temperature: -40°C ~ 125°C (TA)
Mounting Type: Surface Mount
Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package: 10-MSOP
Base Part Number: ADG1422
detail: 2 Circuit IC Switch 1:1 2.4Ohm 10-MSOP
