دیتاشیت ADP1196ACBZ-02-R7

ADP1196

مشخصات دیتاشیت

نام دیتاشیت ADP1196
حجم فایل 377.089 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

دانلود دیتاشیت ADP1196

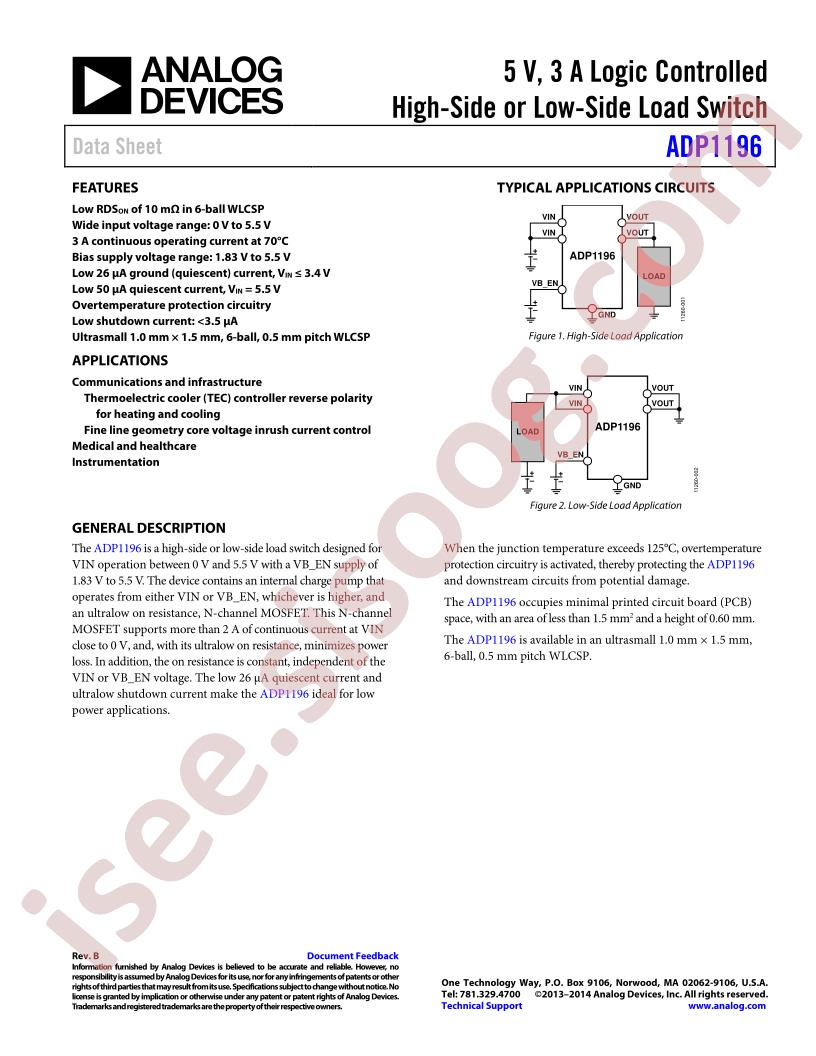

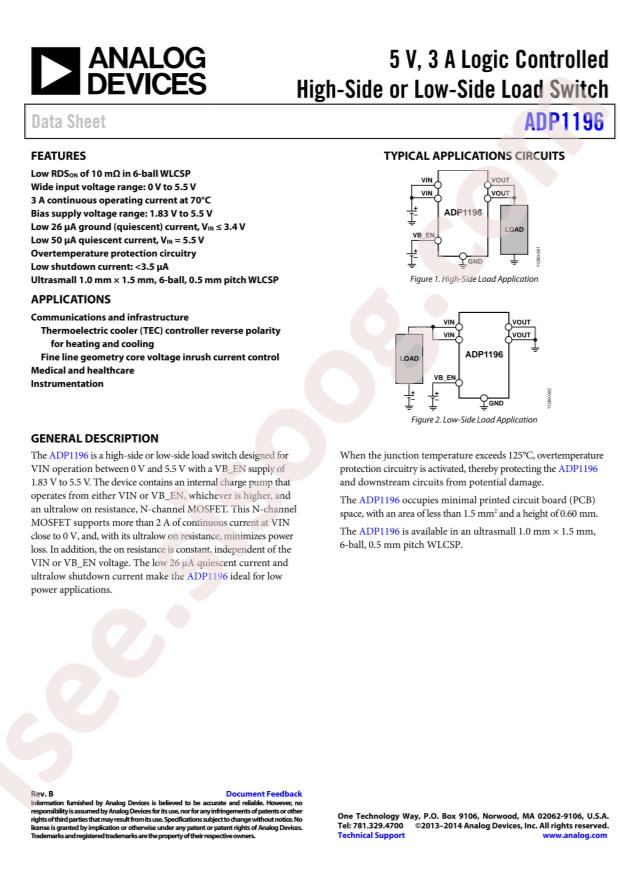

ADP1196 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Power Distribution Switches
  • Datasheet: Analog Devices ADP1196ACBZ-02-R7
  • Package: WLCSP-6
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Switch Type: General Purpose
  • Number of Outputs: 1
  • Ratio - Input:Output: 1:1
  • Output Configuration: High Side or Low Side
  • Output Type: N-Channel
  • Interface: On/Off
  • Voltage - Load: 1.83V ~ 5.5V
  • Voltage - Supply (Vcc/Vdd): Not Required
  • Current - Output (Max): 3A
  • Rds On (Typ): 10mOhm
  • Input Type: Non-Inverting
  • Features: Slew Rate Controlled
  • Fault Protection: Current Limiting (Fixed), Over Temperature
  • Operating Temperature: -40°C ~ 105°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: 6-WLCSP (1.45x0.95)
  • Package / Case: 6-WFBGA, WLCSP
  • Base Part Number: ADP1196
  • detail: Power Switch/Driver 1:1 N-Channel 3A 6-WLCSP (1.45x0.95)
