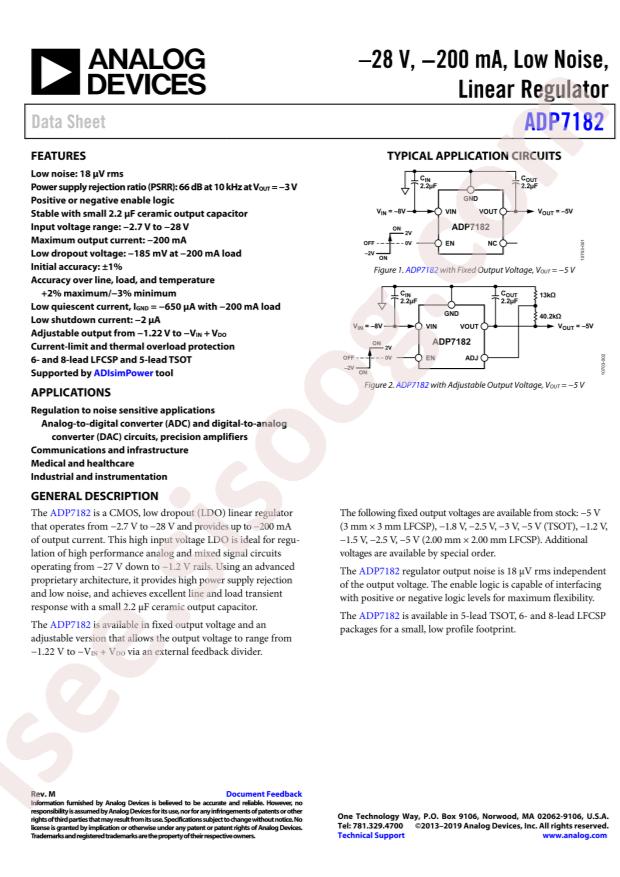

ADP7182ACPZN-R7 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
ADP7182ACPZN-R7
|
|
حجم فایل
|
94.272
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
32
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
Analog Devices ADP7182ACPZN-R7
-
Output Type:
Adjustable
-
Output Current:
200mA
-
Output Voltage:
1.22V~27.64V
-
Dropout Voltage:
0.36V@(200mA)
-
Output Polarity:
Negative
-
Number of Outputs:
1
-
Maximum Input Voltage:
28V
-
Operating Temperature:
-40°C~+125°C
-
Quiescent Current (Ground Current):
53uA
-
Package:
LFCSP-6
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Negative
-
Number of Regulators:
1
-
Voltage - Input (Max):
-28V
-
Voltage - Output (Min/Fixed):
-1.22V
-
Voltage - Output (Max):
-27.64V
-
Voltage Dropout (Max):
0.36V @ 200mA
-
Current - Output:
200mA
-
Current - Quiescent (Iq):
53µA
-
Current - Supply (Max):
850µA
-
PSRR:
66dB ~ 45dB (10kHz ~ 1MHz)
-
Control Features:
Enable
-
Protection Features:
Over Current, Over Temperature
-
Mounting Type:
Surface Mount
-
Package / Case:
6-UDFN Exposed Pad
-
Supplier Device Package:
6-LFCSP (2x2)
-
Base Part Number:
ADP7182
-
detail:
Linear Voltage Regulator IC 1 Output 200mA 6-LFCSP (2x2)
