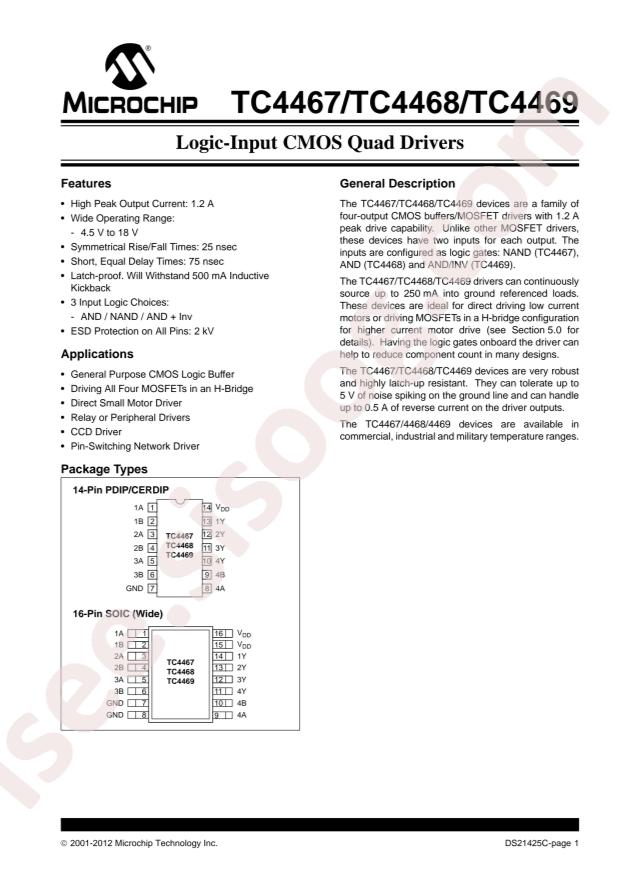

TC4469COE دیتاشیت

TC4469COE

مشخصات دیتاشیت

نام دیتاشیت TC4469COE
حجم فایل 74.151 کیلوبایت
نوع فایل pdf
تعداد صفحات 22

دانلود دیتاشیت TC4469COE

دانلود دیتاشیت

سایر مستندات

TC446(7, 8, 9) 22 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Microchip Tech TC4468CPD
  • Fall Time: 15ns
  • Load Type: MOSFET
  • Rise Time: 15ns
  • Supply Voltage: 4.5V~18V
  • Number of Drivers: 4
  • Driven Configuration: Low Side
  • Operating Temperature: 0°C~+150°C@(Tj)
  • Peak Output Current(sink): 1.2A
  • Peak Output Current(source): 1.2A
  • Package: DIP-14
  • Manufacturer: Microchip Tech
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Channel Type: Independent
  • Gate Type: N-Channel, P-Channel MOSFET
  • Voltage - Supply: 4.5V ~ 18V
  • Logic Voltage - VIL, VIH: 0.8V, 2.4V
  • Current - Peak Output (Source, Sink): 1.2A, 1.2A
  • Input Type: Non-Inverting
  • Rise / Fall Time (Typ): 15ns, 15ns
  • Mounting Type: Through Hole
  • Package / Case: 14-DIP (0.300", 7.62mm)
  • Supplier Device Package: 14-PDIP
  • Base Part Number: TC4468
  • detail: Low-Side Gate Driver IC Non-Inverting 14-PDIP
