دیتاشیت AD5721BRUZ-RL7

AD5761, AD5721

مشخصات دیتاشیت

نام دیتاشیت AD5761, AD5721
حجم فایل 1474.708 کیلوبایت
نوع فایل pdf
تعداد صفحات 31

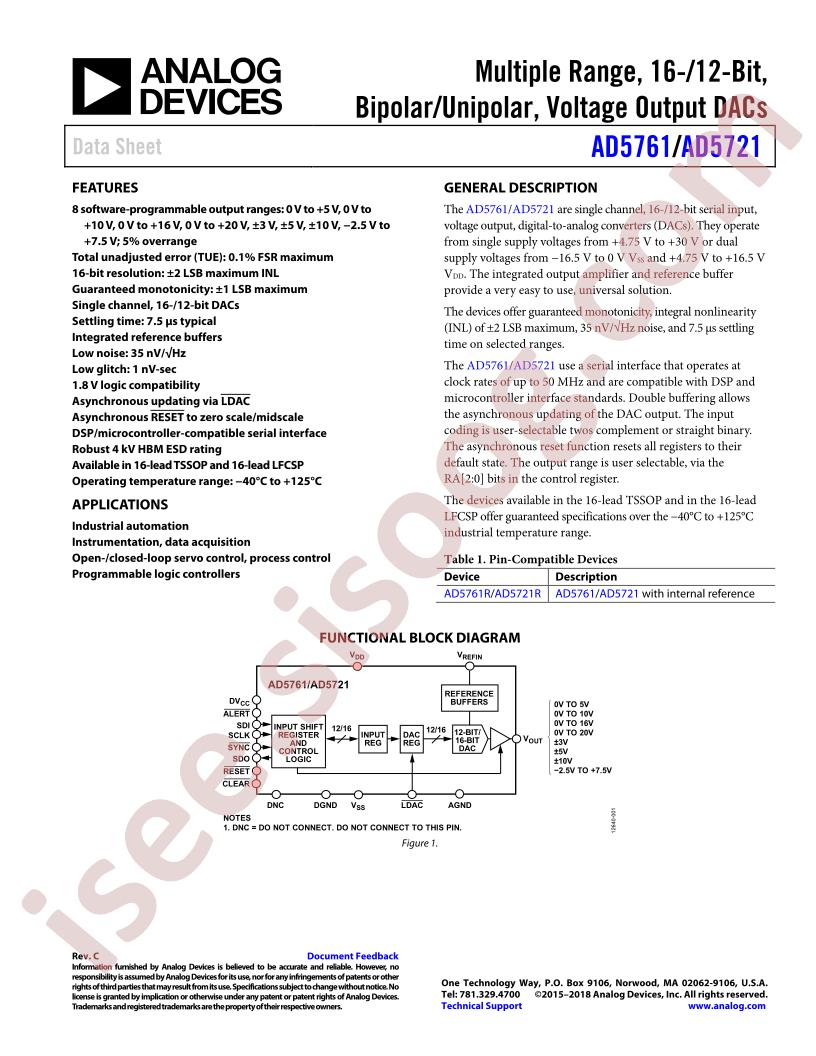

دانلود دیتاشیت AD5761, AD5721

AD5761, AD5721 Datasheet

مشخصات

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
  • Datasheet: Analog Devices AD5721BRUZ-RL7
  • Interface: SPI
  • Resolution: 12Bit
  • Output Type: Voltage-缓冲
  • Settling Time: 12.5us
  • Supply Voltage: 1.7V~5.5V
  • Integral nonlinearity: ±0.5LSB
  • Operating Temperature: -40°C~+125°C
  • Package: TSSOP-16
  • Manufacturer: Analog Devices
  • Series: -
  • Part Status: Active
  • Number of Bits: 12
  • Number of D/A Converters: 1
  • Differential Output: No
  • Data Interface: SPI
  • Reference Type: External
  • Voltage - Supply, Analog: 4.75V ~ 30V
  • Voltage - Supply, Digital: 1.7V ~ 5.5V
  • INL/DNL (LSB): ±0.5 (Max), ±0.5 (Max)
  • Architecture: R-2R
  • Package / Case: 16-TSSOP (0.173", 4.40mm Width)
  • Supplier Device Package: 16-TSSOP
  • Mounting Type: Surface Mount
  • Base Part Number: AD5721
  • detail: 12 Bit Digital to Analog Converter 1 16-TSSOP
