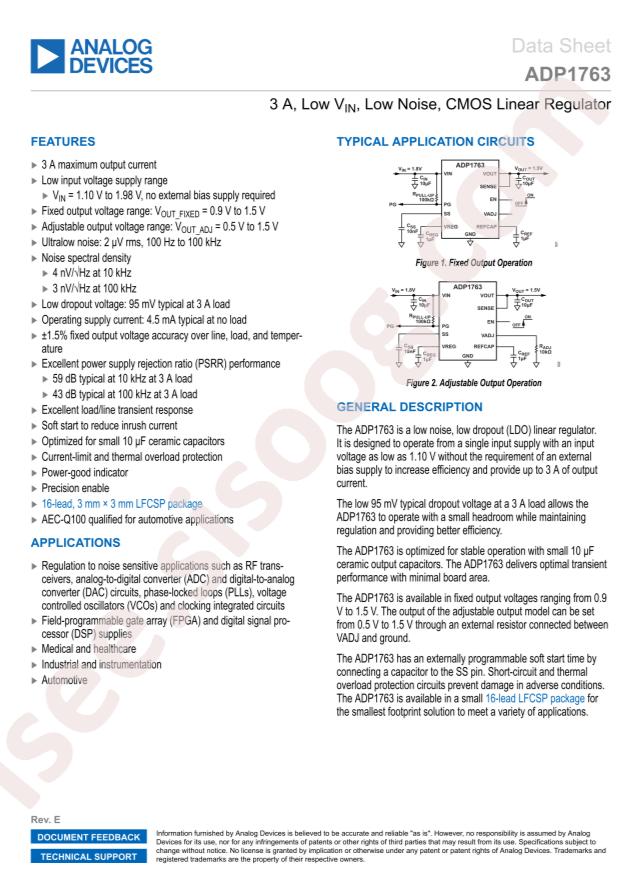

دیتاشیت ADP1763ACPZ-0.9-R7
مشخصات دیتاشیت
نام دیتاشیت | ADP1763 Datasheet |
---|---|
حجم فایل | 835.848 کیلوبایت |
نوع فایل | |
تعداد صفحات | 19 |
دانلود دیتاشیت ADP1763 Datasheet |
ADP1763 Datasheet Datasheet |
---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Analog Devices ADP1763ACPZ-0.9-R7
- Output Current: 3A
- Output Voltage: 0.9V
- Dropout Voltage: 0.145V@(3A)
- Output Polarity: positive
- Number of Outputs: 1
- Maximum Input Voltage: 1.98V
- Operating Temperature: -40°C~+125°C@(Tj)
- Quiescent Current (Ground Current): 8mA
- Package: LFCSP-16(3x3)
- Manufacturer: Analog Devices
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Discontinued at Digi-Key
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 1.98V
- Voltage - Output (Min/Fixed): 0.9V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.145V @ 3A
- Current - Output: 3A
- Current - Quiescent (Iq): 8mA
- Current - Supply (Max): 16mA
- PSRR: 62dB ~ 33dB (10kHz ~ 1MHz)
- Control Features: Enable, Power Good, Soft Start
- Protection Features: Current Limit, Thermal Overload
- Mounting Type: Surface Mount
- Package / Case: 16-WFQFN Exposed Pad
- Supplier Device Package: 16-LFCSP-WQ (3x3)
- Base Part Number: ADP1763
- detail: Linear Voltage Regulator IC 1 Output 3A 16-LFCSP-WQ (3x3)
