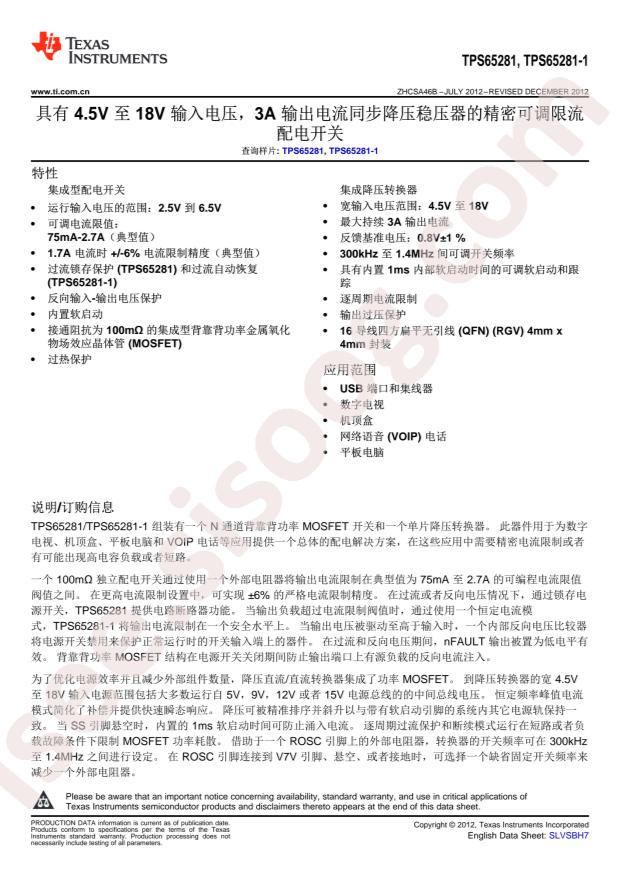

دیتاشیت TPS65281-1RGVR

TPS65281(-1)

مشخصات دیتاشیت

نام دیتاشیت TPS65281(-1)
حجم فایل 1658.096 کیلوبایت
نوع فایل pdf
تعداد صفحات 34

دانلود دیتاشیت TPS65281(-1)

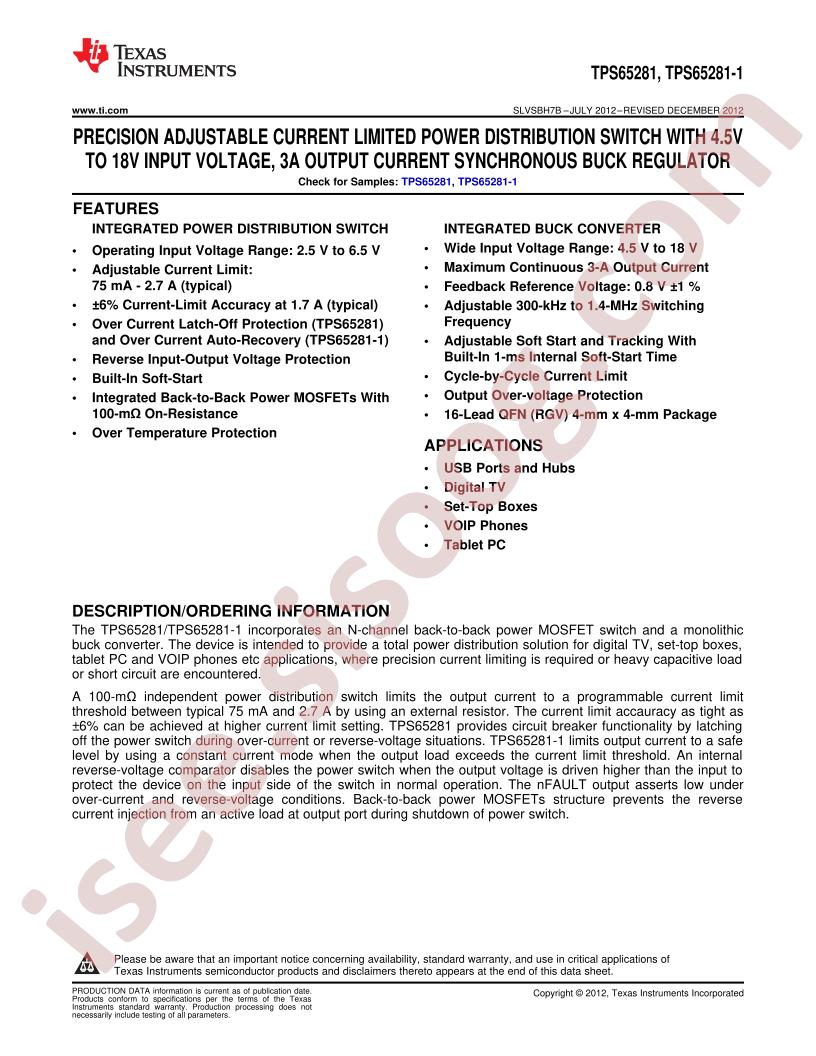

TPS65281(-1) Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Power Distribution Switches
  • Datasheet: Texas Instruments TPS65281-1RGVR
  • Input Voltage: 4.5V~18V
  • Output Current: 2.7A
  • Number of Outputs: 1
  • Resistor On-State: 90mΩ
  • Operating Temperature -: -40°C~+125°C
  • Package: QFN-16-EP(4x4)
  • Manufacturer: Texas Instruments
  • Voltage - Supply (Vcc/Vdd): Not Required
  • Base Part Number: TPS652
  • Operating Temperature: -40°C ~ 125°C (TJ)
  • Package / Case: 16-VQFN Exposed Pad
  • Ratio - Input:Output: 1:1
  • Current - Output (Max): 2.7A
  • Voltage - Load: 4.5V ~ 18V
  • Series: -
  • Rds On (Typ): 90mOhm
  • Supplier Device Package: 16-VQFN (4x4)
  • Fault Protection: Current Limiting (Adjustable), Over Temperature, UVLO
  • Output Configuration: High Side
  • Part Status: Active
  • Mounting Type: Surface Mount
  • Interface: On/Off
  • Switch Type: USB Switch
  • Packaging: Cut Tape (CT)
  • Input Type: -
  • Features: Slew Rate Controlled, Status Flag
  • Output Type: N-Channel
  • detail: Power Switch/Driver 1:1 N-Channel 2.7A 16-VQFN (4x4)
