دیتاشیت ADP7158ARDZ-3.3-R7
مشخصات دیتاشیت
| نام دیتاشیت | ADP7158 |
|---|---|
| حجم فایل | 734.986 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 22 |
دانلود دیتاشیت ADP7158 |

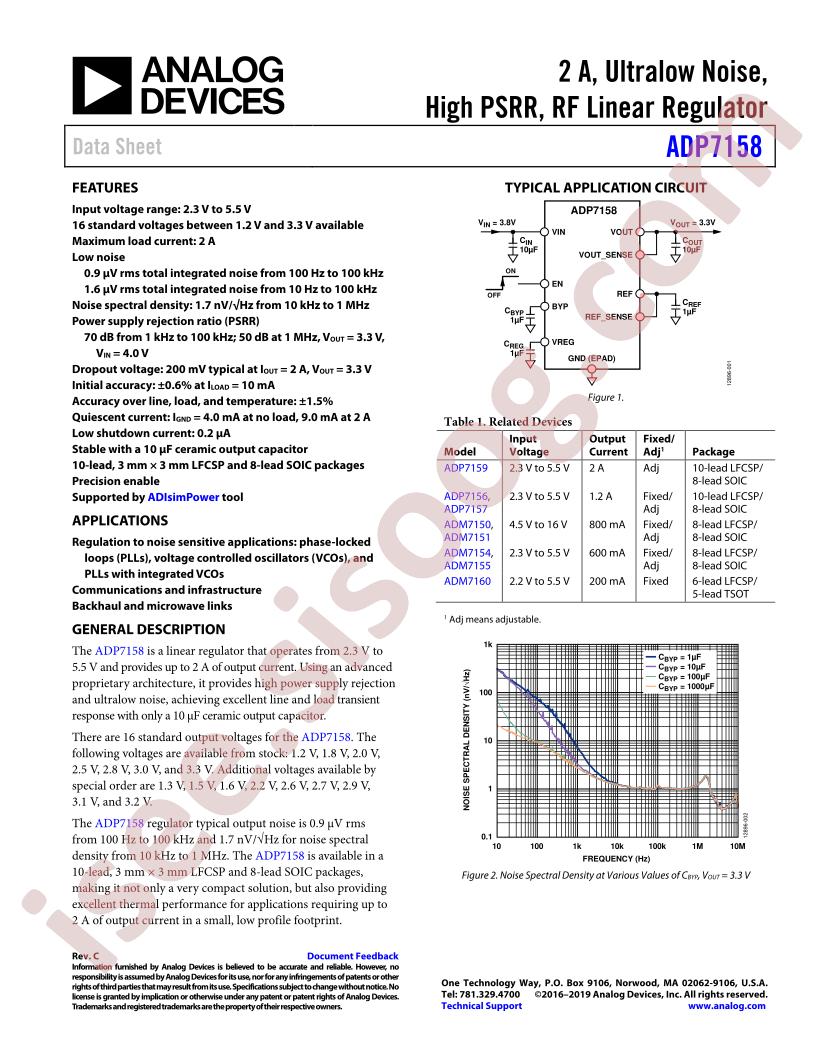

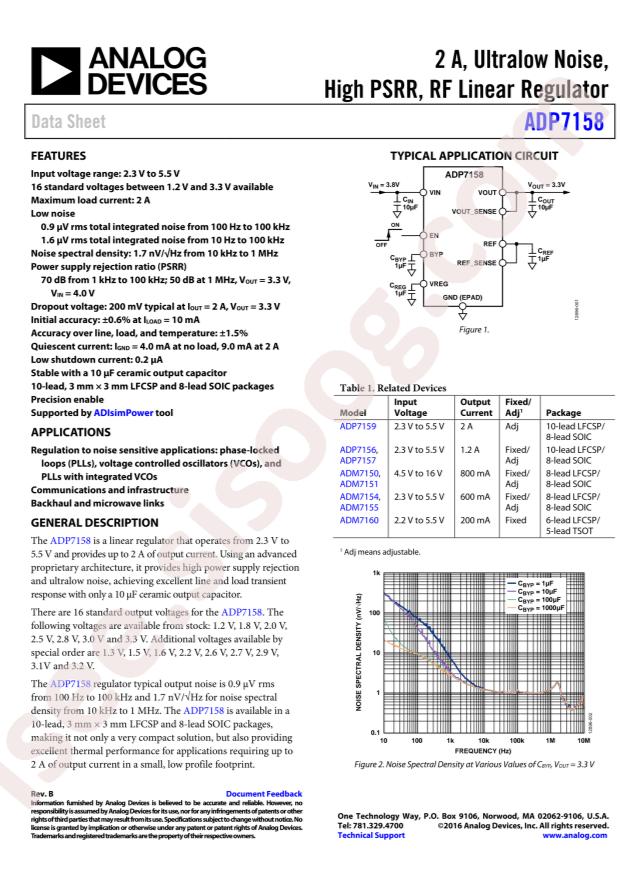

ADP7158 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Analog Devices ADP7158ARDZ-3.3-R7
- Output Type: Fixed
- Output Current: 2A
- Output Voltage: 3.3V
- Dropout Voltage: 280mV@(2A)
- Output Polarity: Positive
- Number of Outputs: 1
- Maximum Input Voltage: 5.5V
- Operating Temperature: -40°C~+125°C
- Quiescent Current (Ground Current): 8mA
- Power Supply Rejection Ratio (PSRR): 70dB@(1kHz,100kHz),50dB@(1MHz)
- Package: SOP-8
- Manufacturer: Analog Devices
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Output Configuration: Positive
- Number of Regulators: 1
- Voltage - Input (Max): 5.5V
- Voltage - Output (Min/Fixed): 3.3V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.28V @ 2A
- Current - Output: 2A
- Current - Quiescent (Iq): 8mA
- Current - Supply (Max): 14mA
- PSRR: 70dB ~ 50dB (1kHz ~ 1MHz)
- Control Features: Enable
- Protection Features: Over Current, Over Temperature, Under Voltage Lockout (UVLO)
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width) Exposed Pad
- Supplier Device Package: 8-SOIC-EP
- Base Part Number: ADP7158
- detail: Linear Voltage Regulator IC 1 Output 2A 8-SOIC-EP
