ADUC814BRUZ-REEL7 دیتاشیت

ADUC814BRUZ-REEL7

مشخصات دیتاشیت

نام دیتاشیت ADUC814BRUZ-REEL7
حجم فایل 120.038 کیلوبایت
نوع فایل pdf
تعداد صفحات 72

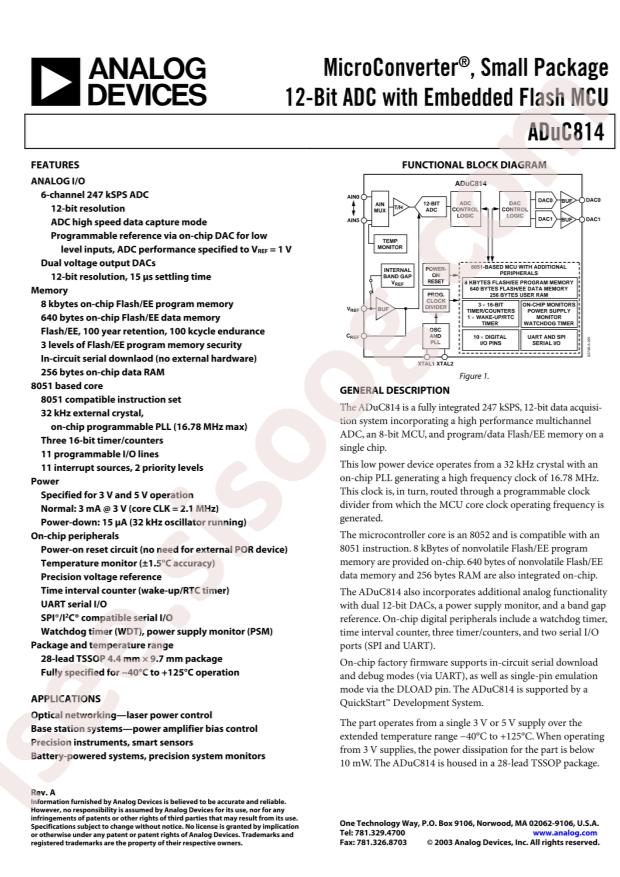

دانلود دیتاشیت ADUC814BRUZ-REEL7

دانلود دیتاشیت

سایر مستندات

ADUC814 72 pages

مشخصات فنی

  • RoHS: true
  • EEPROM: -
  • CPU Core: 51Series
  • Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
  • RAM Size: -
  • Watchdog: Yes
  • ADC (Bit): 12bit
  • DAC (Bit): 12bit
  • Datasheet: Analog Devices ADUC814BRUZ-REEL7
  • PWM (Bit): -
  • Real-Time Clock: -
  • CPU Maximum Speed: 16.78MHz
  • GPIO Ports Number: 17
  • Low-Voltage Detect: Yes
  • CCP Capture/Compare: -
  • Internal Comparator: -
  • Internal Oscillator: Yes
  • Peripheral/Function: On-chip temperature sensor
  • Program Memory Type: FLASH
  • Direct Memory Access: -
  • Program Storage Size: 8KB
  • Universal Serial Bus: -
  • communication protocol: -
  • Operating Voltage Range: 2.7V~5.5V
  • Infrared Data Association: -
  • Operating Temperature Range: -40°C~+125°C
  • Secure Digital Input and Output: -
  • Package: TSSOP-28
  • Manufacturer: Analog Devices
  • Series: MicroConverter® ADuC8xx
  • Packaging: Tube
  • Part Status: Obsolete
  • Core Processor: 8052
  • Core Size: 8-Bit
  • Speed: 16.78MHz
  • Connectivity: I²C, SPI, UART/USART
  • Peripherals: POR, PSM, Temp Sensor, WDT
  • Number of I/O: 17
  • Program Memory Size: 8KB (8K x 8)
  • EEPROM Size: 640 x 8
  • Voltage - Supply (Vcc/Vdd): 2.7V ~ 5.5V
  • Data Converters: A/D 6x12b; D/A 2x12b
  • Oscillator Type: Internal
  • Operating Temperature: -40°C ~ 125°C (TA)
  • Mounting Type: Surface Mount
  • Package / Case: 28-TSSOP (0.173", 4.40mm Width)
  • Supplier Device Package: 28-TSSOP
  • Base Part Number: ADUC814
  • detail: 8052 MicroConverter® ADuC8xx Microcontroller IC 8-Bit 16.78MHz 8KB (8K x 8) FLASH 28-TSSOP
