دیتاشیت ADL5802ACPZ-R7

ADL5802

مشخصات دیتاشیت

نام دیتاشیت ADL5802
حجم فایل 686.062 کیلوبایت
نوع فایل pdf
تعداد صفحات 32

دانلود دیتاشیت ADL5802

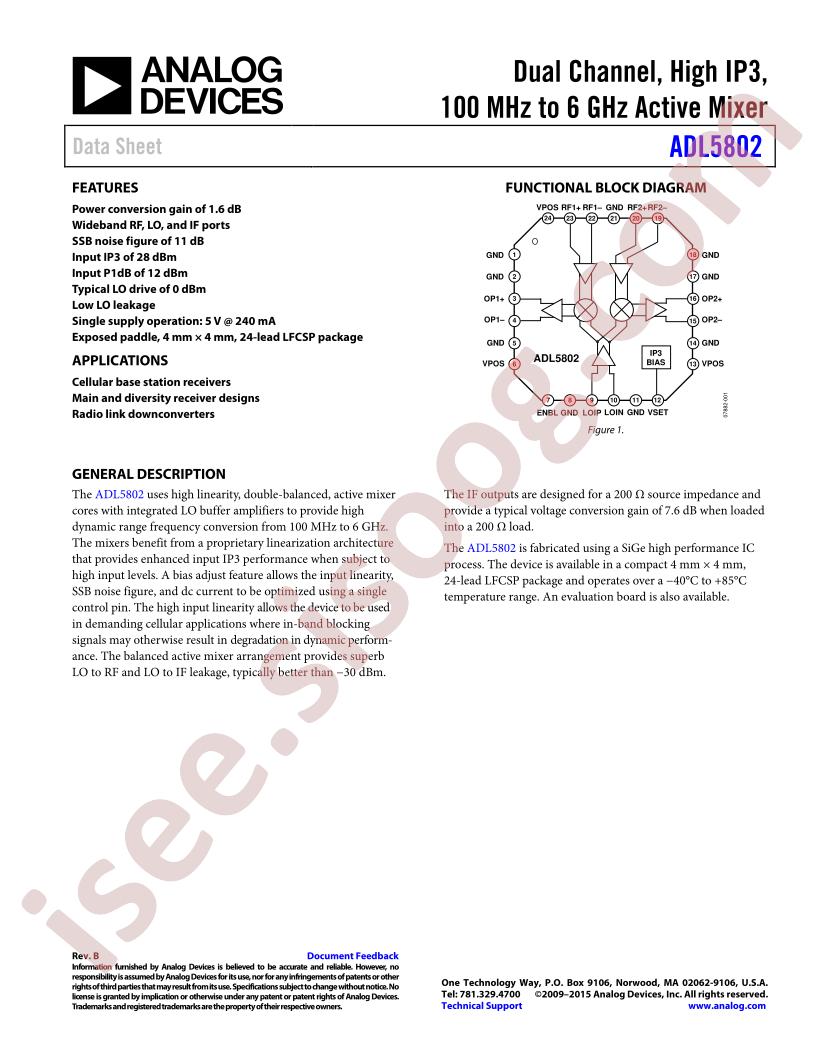

ADL5802 Datasheet

مشخصات

  • Gain: 7.6dB
  • RoHS: true
  • Category: Radio Frequency Chip/Antenna/RF Mixers
  • Applications: Cellular
  • Noise Figure: 11dB
  • Supply Current: 220mA
  • Supply Voltage: 4.75V~5.25V
  • Frequency Range: 100MHz~6GHz
  • Package: LFCSP-24
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • RF Type: Cellular
  • Frequency: 100MHz ~ 6GHz
  • Number of Mixers: 2
  • Secondary Attributes: -
  • Current - Supply: 220mA
  • Voltage - Supply: 4.75V ~ 5.25V
  • Mounting Type: Surface Mount
  • Package / Case: 24-WFQFN Exposed Pad, CSP
  • Supplier Device Package: 24-LFCSP-WQ (4x4)
  • Base Part Number: ADL5802
  • detail: RF Mixer IC Cellular 100MHz ~ 6GHz 24-LFCSP-WQ (4x4)
