ADE7854A,58A,68A,78A Datasheet

ADE7854A,58A,68A,78A

Datasheet specifications

Datasheet's name ADE7854A,58A,68A,78A
File size 1819.258 KB
File type pdf
Number of pages 96

Download Datasheet ADE7854A,58A,68A,78A

Download Datasheet

Other documentations

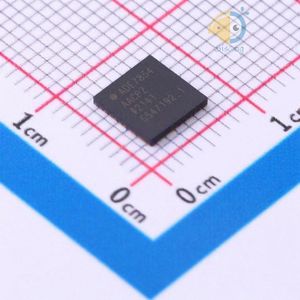

ADE7854AACPZ 96 pages

Technical specifications

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Energy Metering ICs
  • Datasheet: Analog Devices ADE7858AACPZ-RL
  • Impedance: 400kΩ
  • Meter Type: 三相电量芯片
  • Operating Current: 20mA
  • Operating Voltage: 2.8V~3.7V
  • Operating Temperature: -40°C~+85°C
  • Package: WFQFN-40
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Input Impedance: 400kOhm
  • Measurement Error: 0.2%
  • Voltage - I/O High: 2V, 2.4V
  • Voltage - I/O Low: 0.4V, 0.8V
  • Current - Supply: 20mA
  • Voltage - Supply: 2.8V ~ 3.7V
  • Mounting Type: Surface Mount
  • Package / Case: 40-WFQFN Exposed Pad, CSP
  • Supplier Device Package: 40-LFCSP-WQ (6x6)
  • Base Part Number: ADE7858
  • detail: 3 Phase Meter IC 40-LFCSP-WQ (6x6)
