ADP1972ARUZ-R7 دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت ADP1972ARUZ-R7	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/DC-DC Controllers
Function: Step-down type
Topology: Step-down
Datasheet: Analog Devices ADP1972ARUZ-R7
Input Voltage: 6V~60V
Duty Cycle (Max): 97.37%
Number of Outputs: 1
Switching Frequency: 300kHz
Operating Temperature: -40°C~+85°C@(TA)
Synchronous Rectification: Yes

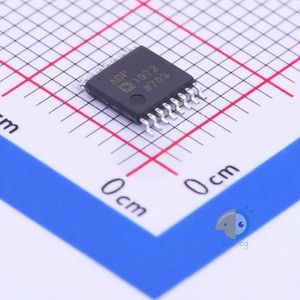

Package: TSSOP-16
Manufacturer: Analog Devices
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Output Type: Transistor Driver
Output Configuration: Positive
Output Phases: 1
Voltage - Supply (Vcc/Vdd): 6V ~ 60V
Frequency - Switching: 50kHz ~ 300kHz
Synchronous Rectifier: Yes
Clock Sync: Yes
Serial Interfaces: -
Control Features: Current Limit, Enable, Frequency Control, Soft Start
Mounting Type: Surface Mount
Package / Case: 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package: 16-TSSOP
Base Part Number: ADP1972
detail: Buck Regulator Positive Output Step-Down DC-DC Controller IC 16-TSSOP
