دیتاشیت AD680ARZ-REEL7

AD680

مشخصات دیتاشیت

نام دیتاشیت AD680
حجم فایل 401.932 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

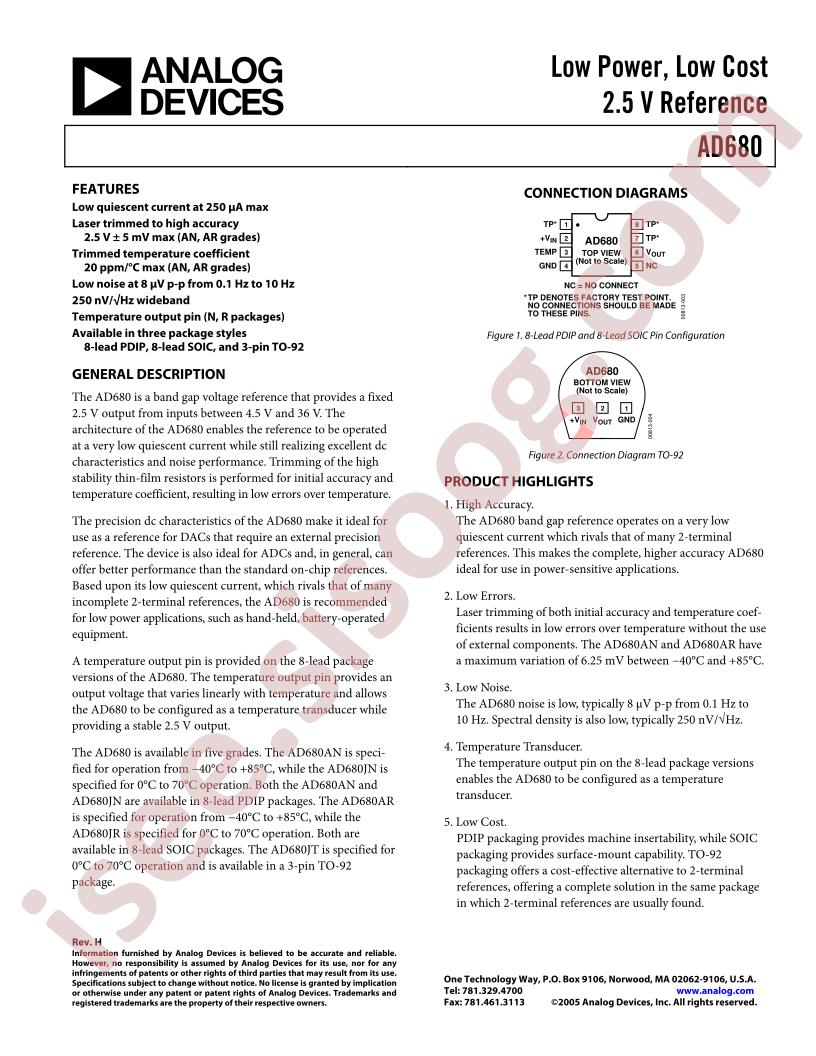

دانلود دیتاشیت AD680

AD680 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Voltage References
  • Datasheet: Analog Devices AD680ARZ-REEL7
  • Tolerance: ±0.2%
  • Output Type: Fixed
  • Input Voltage: 4.5V~36V
  • Output Current: 10mA
  • Output Voltage: 2.5V
  • Reference Type: series connection
  • Supply Current: 280uA
  • Noise - 10Hz to 10kHz: -
  • Operating Temperature: -40°C~+85°C@(Ta)
  • Noise - 1/10Hz to 10Hz: 10uVp-p
  • Temperature Coefficient: 20ppm/°C
  • Package: SOIC-8
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Voltage - Output (Min/Fixed): 2.5V
  • Current - Output: 10mA
  • Noise - 0.1Hz to 10Hz: 10µVp-p
  • Voltage - Input: 4.5V ~ 36V
  • Current - Supply: 280µA
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SOIC
  • Base Part Number: AD680
  • detail: Series Voltage Reference IC ±0.2% 8-SOIC
