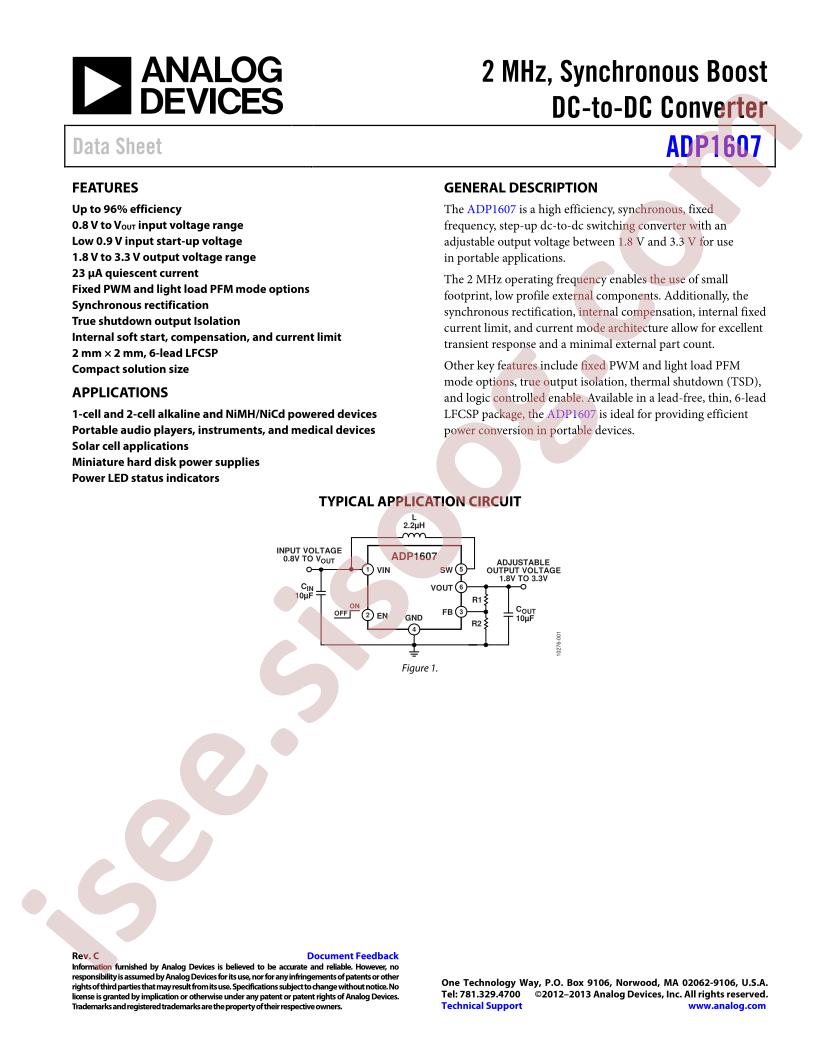

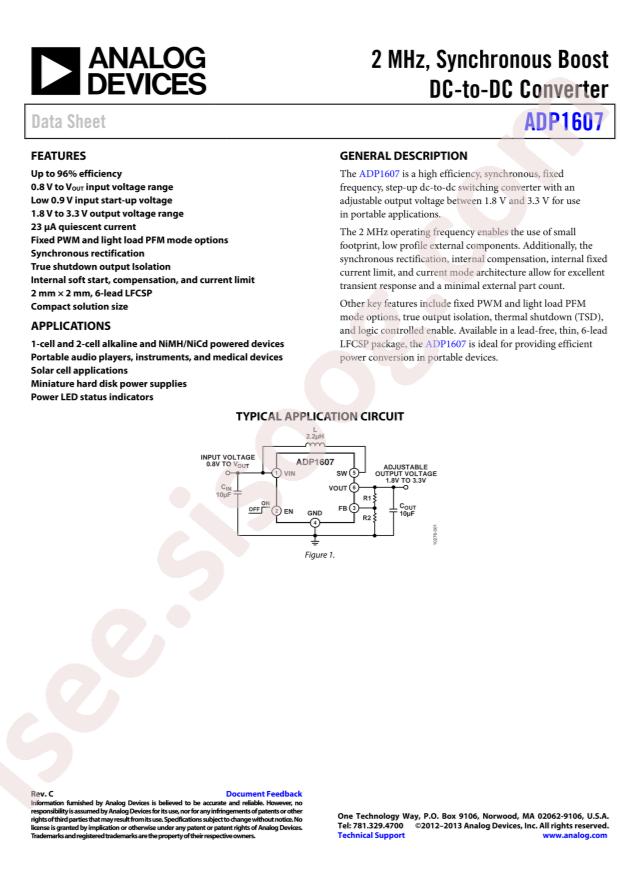

دیتاشیت ADP1607ACPZN-R7
مشخصات دیتاشیت
| نام دیتاشیت |
ADP1607
|
| حجم فایل |
634.421
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
16
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
boost converterType
-
Topology:
Boost
-
Datasheet:
Analog Devices ADP1607ACPZN-R7
-
Output Type:
Adjustable
-
Input Voltage:
0.8V~3.3V
-
Output Voltage:
1.8V~3.3V
-
Number of Outputs:
1
-
Switching Frequency:
2MHz
-
Output Current (Max):
1A
-
Operating Temperature:
-40°C~+85°C@(TA)
-
Synchronous Rectification:
Yes
-
Package:
LFCSP-6
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Voltage - Input (Min):
0.8V
-
Voltage - Input (Max):
3.3V
-
Voltage - Output (Min/Fixed):
1.8V
-
Voltage - Output (Max):
3.3V
-
Current - Output:
1A (Switch)
-
Frequency - Switching:
2MHz
-
Synchronous Rectifier:
Yes
-
Mounting Type:
Surface Mount
-
Package / Case:
6-UDFN Exposed Pad, CSP
-
Supplier Device Package:
6-LFCSP-UD (2x2)
-
Base Part Number:
ADP1607
-
detail:
Boost Switching Regulator IC Positive Adjustable 1.8V 1 Output 1A (Switch) 6-UDFN Exposed Pad, CSP
