دیتاشیت ADM7155ARDZ-04-R7
مشخصات دیتاشیت
| نام دیتاشیت | ADM7155 |
|---|---|
| حجم فایل | 717.667 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 24 |
دانلود دیتاشیت ADM7155 |

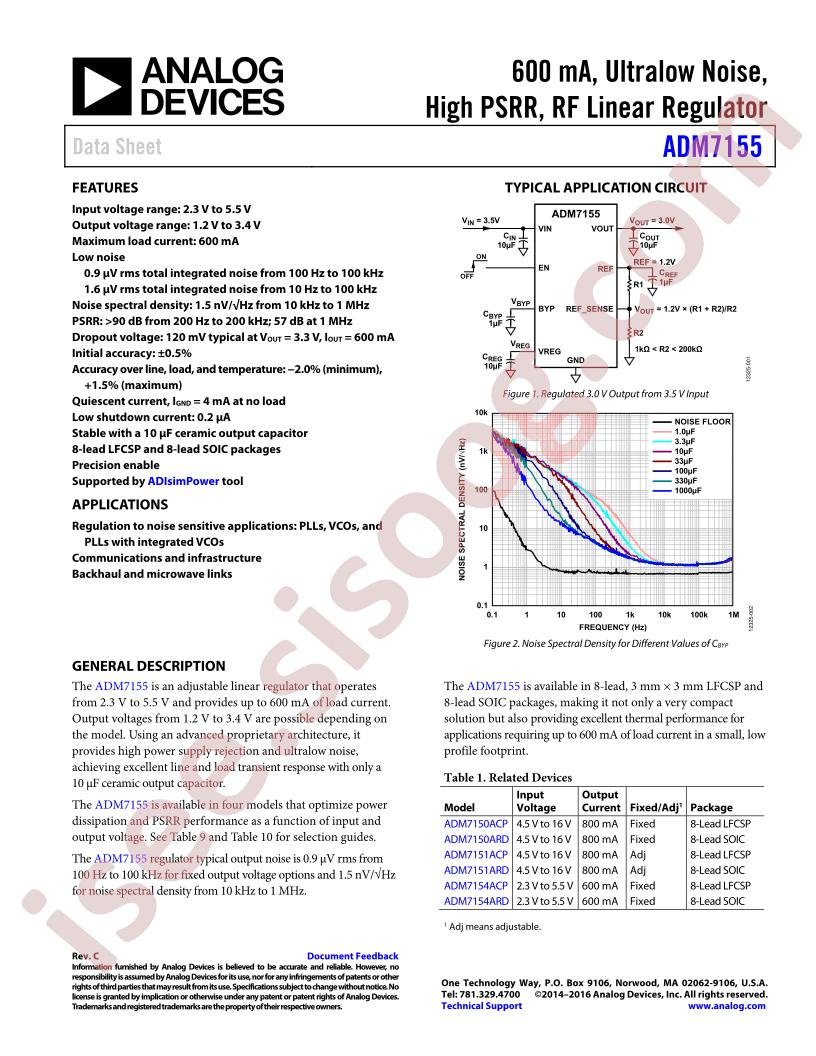

ADM7155 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Analog Devices ADM7155ARDZ-04-R7
- Output Type: Adjustable
- Output Current: 600mA
- Output Voltage: 1.2V~3.4V
- Dropout Voltage: 0.21V@(600mA)
- Output Polarity: positive
- Number of Outputs: 1
- Maximum Input Voltage: 5.5V
- Operating Temperature: -40°C~+125°C
- Quiescent Current (Ground Current): 7mA
- Package: SOP-8
- Manufacturer: Analog Devices
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Output Configuration: Positive
- Number of Regulators: 1
- Voltage - Input (Max): 5.5V
- Voltage - Output (Min/Fixed): 1.2V
- Voltage - Output (Max): 3.4V
- Voltage Dropout (Max): 0.21V @ 600mA
- Current - Output: 600mA
- Current - Quiescent (Iq): 7mA
- Current - Supply (Max): 10mA
- PSRR: 94dB ~ 57dB (1kHz ~ 1MHz)
- Control Features: Enable
- Protection Features: Over Current, Over Temperature
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width) Exposed Pad
- Supplier Device Package: 8-SOIC
- Base Part Number: ADM7155
- detail: Linear Voltage Regulator IC 1 Output 600mA 8-SOIC
