MSP430G2x55 Datasheet دیتاشیت

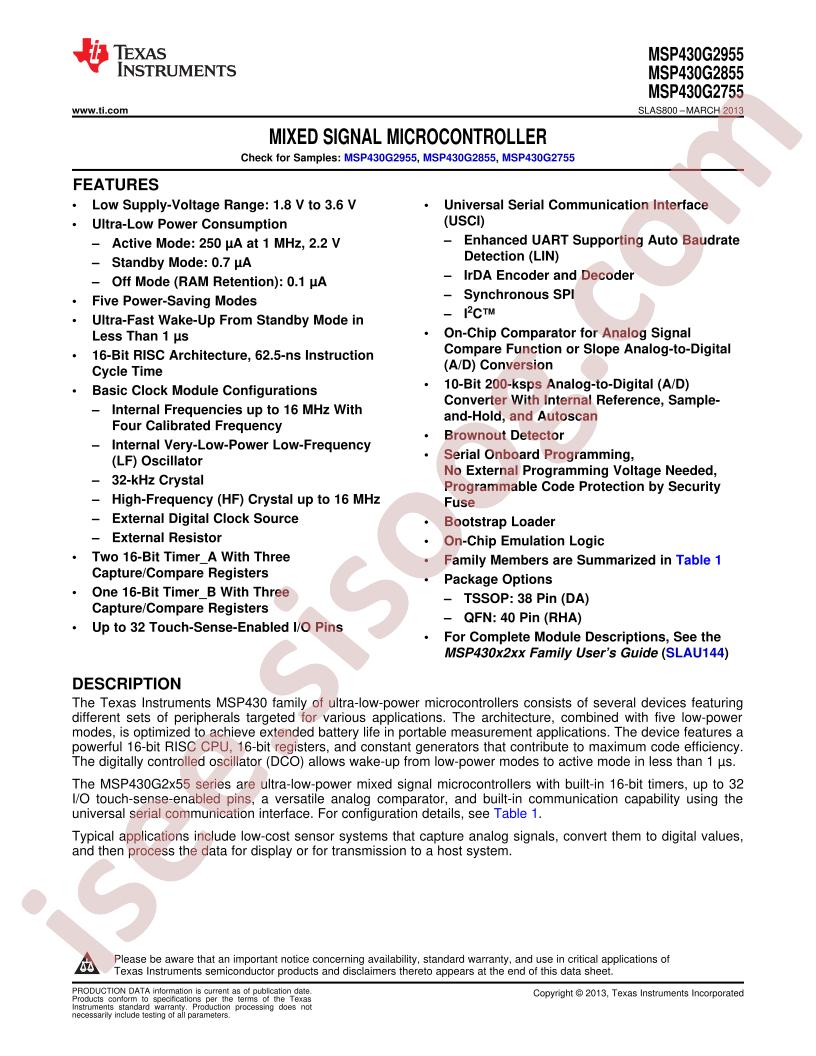

MSP430G2x55 Datasheet

مشخصات دیتاشیت

نام دیتاشیت MSP430G2x55 Datasheet
حجم فایل 1613.877 کیلوبایت
نوع فایل pdf
تعداد صفحات 73

دانلود دیتاشیت MSP430G2x55 Datasheet

دانلود دیتاشیت

سایر مستندات

MSP430G2955IDA38R 75 pages

مشخصات فنی

  • CAN: -
  • I2C: -
  • I2S: -
  • SPI: -
  • RoHS: true
  • EEPROM: -
  • CPU Core: MSP430
  • Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
  • RAM Size: 4KB
  • Watchdog: Yes
  • ADC (Bit): 10bit
  • DAC (Bit): -
  • Datasheet: Texas Instruments MSP430G2855IDA38R
  • PWM (Bit): -
  • 8Bit Timer: -
  • UART/USART: -
  • 16Bit Timer: -
  • 32Bit Timer: -
  • Real-Time Clock: -
  • CPU Maximum Speed: 16MHz
  • GPIO Ports Number: 32
  • Low-Voltage Detect: Yes
  • CCP Capture/Compare: -
  • Internal Comparator: -
  • Internal Oscillator: Yes
  • Peripheral/Function: LIN(Local Interconnect Network);IrDA
  • Program Memory Type: FLASH
  • Direct Memory Access: -
  • Program Storage Size: 48KB
  • Universal Serial Bus: -
  • communication protocol: -
  • Operating Voltage Range: 1.8V~3.6V
  • Infrared Data Association: Yes
  • Operating Temperature Range: -40°C~+85°C
  • Secure Digital Input and Output: -
  • Package: TSSOP-38
  • Manufacturer: Texas Instruments
  • Peripherals: Brown-out Detect/Reset, POR, WDT
  • Voltage - Supply (Vcc/Vdd): 1.8V ~ 3.6V
  • Base Part Number: 430G2855
  • Speed: 16MHz
  • Package / Case: 38-TSSOP (0.240", 6.10mm Width)
  • EEPROM Size: -
  • Supplier Device Package: 38-TSSOP
  • Series: MSP430G2xx
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Number of I/O: 32
  • Oscillator Type: Internal
  • Part Status: Active
  • Mounting Type: Surface Mount
  • Core Size: 16-Bit
  • Connectivity: I²C, IrDA, LINbus, SCI, SPI, UART/USART
  • Program Memory Size: 48KB (48K x 8)
  • Core Processor: MSP430
  • Packaging: Tube
  • Data Converters: A/D 12x10b
  • detail: MSP430 MSP430G2xx Microcontroller IC 16-Bit 16MHz 48KB (48K x 8) FLASH 38-TSSOP
