دیتاشیت ADP1764ACPZ-R7
مشخصات دیتاشیت
| نام دیتاشیت |
ADP1764
|
| حجم فایل |
789.39
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
20
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:

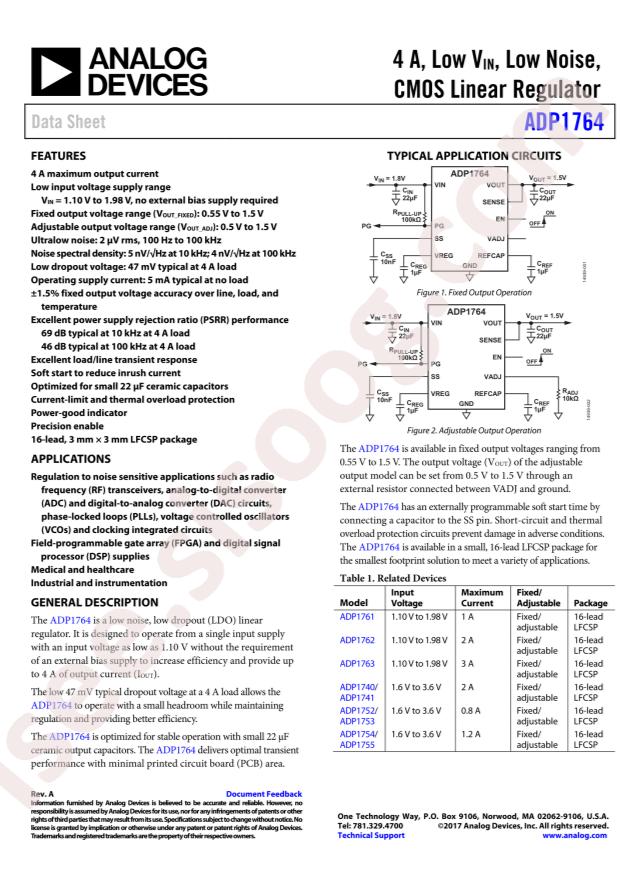

Analog Devices ADP1764ACPZ-R7
-
Output Type:
Adjustable
-
Output Current:
4A
-
Output Voltage:
0.5V~1.5V
-
Dropout Voltage:
0.075V@(4A)
-
Output Polarity:
positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
1.98V
-
Operating Temperature:
-40°C~+125°C@(Tj)
-
Quiescent Current (Ground Current):
17mA
-
Package:
LFCSP-16
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Number of Regulators:
1
-
Voltage - Input (Max):
1.98V
-
Voltage - Output (Min/Fixed):
0.5V
-
Voltage - Output (Max):
1.5V
-
Voltage Dropout (Max):
0.075V @ 4A
-
Current - Output:
4A
-
Current - Quiescent (Iq):
17mA
-
Current - Supply (Max):
23mA
-
PSRR:
69dB ~ 35dB (10kHz ~ 1MHz)
-
Control Features:
Enable, Power Good, Soft Start
-
Protection Features:
Current Limit, Thermal Overload
-
Mounting Type:
Surface Mount
-
Package / Case:
16-WFQFN Exposed Pad, CSP
-
Supplier Device Package:
16-LFCSP (3x3)
-
Base Part Number:
ADP1764
-
detail:
Linear Voltage Regulator IC 1 Output 4A 16-LFCSP (3x3)
