دیتاشیت DSPIC30F4012-20E/SO

مشخصات دیتاشیت

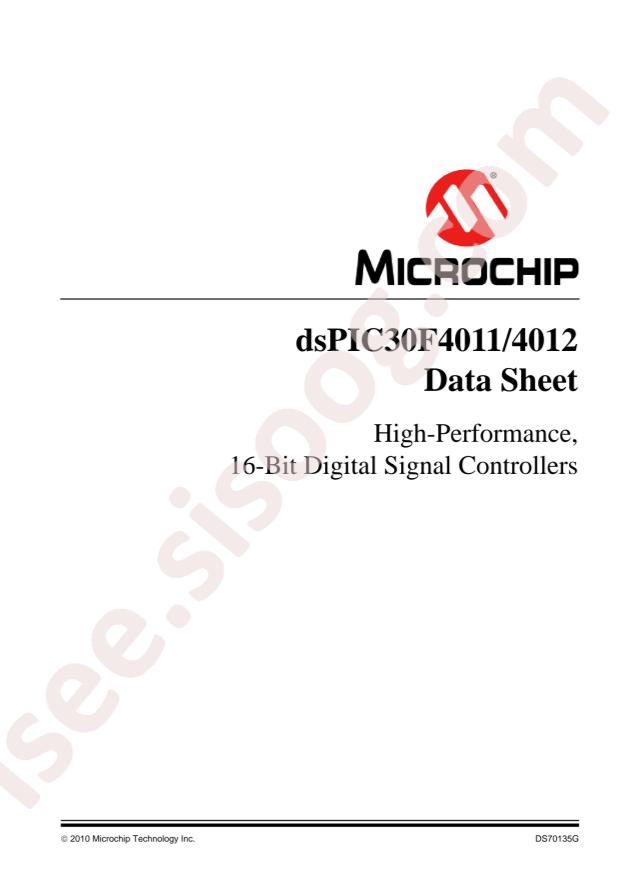

دانلود دیتاشیت DSPIC30F4011, 4012 Data Sheet	DSPIC30F4011, 4012 Data Sheet Datasheet

RoHS: true
Category: Single Chip Microcomputer/Microcontroller/Digital Signal Processors / Controllers (DSPs/DSCs)
Datasheet: Microchip Tech DSPIC30F4012-20E/SO
FLASH Size: 48KB
Maximum Speed: 80MHz
GPIO Ports Number: 20
Supply Voltage Range: 2.5V~5.5V
Operating Temperature Range: -40°C~+125°C
Package: SOP-28-300mil
Manufacturer: Microchip Tech
Series: dsPIC™ 30F
Packaging: Tube
Part Status: Active
Core Processor: dsPIC
Core Size: 16-Bit
Speed: 20 MIPS
Connectivity: CANbus, I²C, SPI, UART/USART
Peripherals: Brown-out Detect/Reset, Motor Control PWM, QEI, POR, PWM, WDT
Number of I/O: 20
Program Memory Size: 48KB (16K x 24)
Program Memory Type: FLASH
EEPROM Size: 1K x 8
RAM Size: 2K x 8
Voltage - Supply (Vcc/Vdd): 2.5V ~ 5.5V
Data Converters: A/D 6x10b
Oscillator Type: Internal
Operating Temperature: -40°C ~ 125°C (TA)
Mounting Type: Surface Mount
Package / Case: 28-SOIC (0.295", 7.50mm Width)
Supplier Device Package: 28-SOIC
Base Part Number: DSPIC30F4012
detail: dsPIC dsPIC™ 30F Microcontroller IC 16-Bit 20 MIPS 48KB (16K x 24) FLASH 28-SOIC
