AD7790BRMZ-REEL Datasheet

AD7790BRMZ-REEL

Datasheet specifications

Datasheet's name AD7790BRMZ-REEL
File size 77.225 KB
File type pdf
Number of pages 20

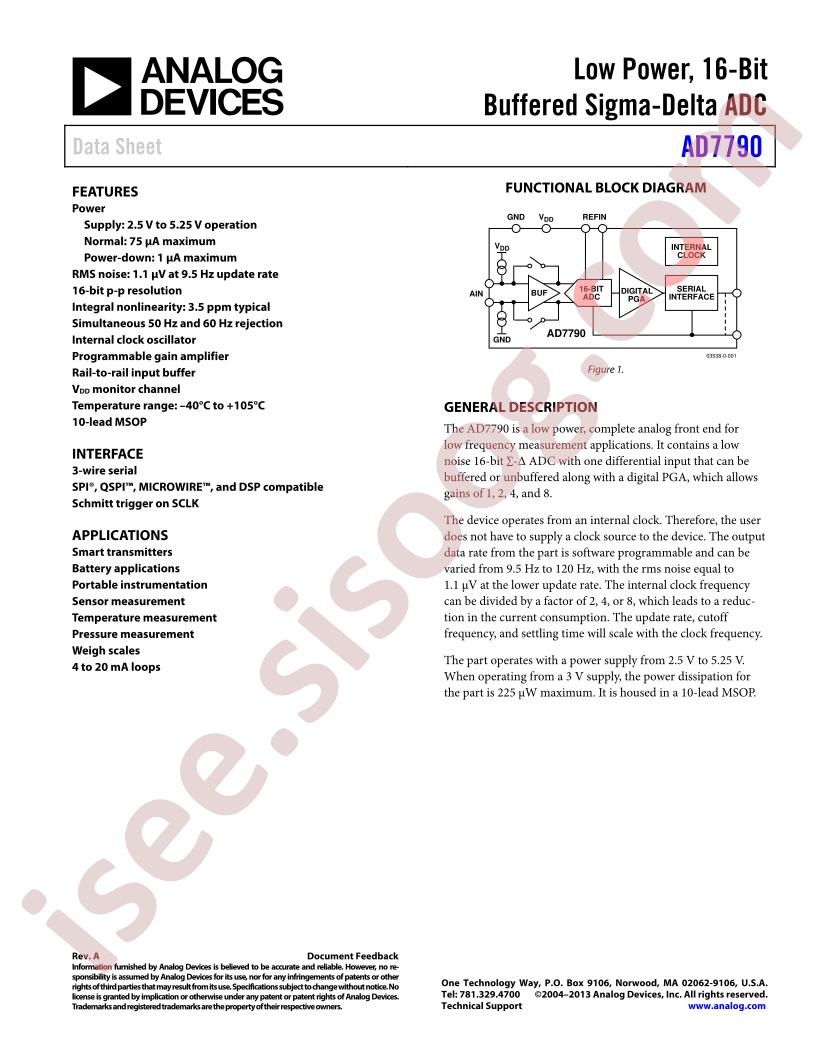

Download Datasheet AD7790BRMZ-REEL

Download Datasheet

Other documentations

Low Noise, Single-Supply, Toxic Gas Detector...CN-0357 5 pages

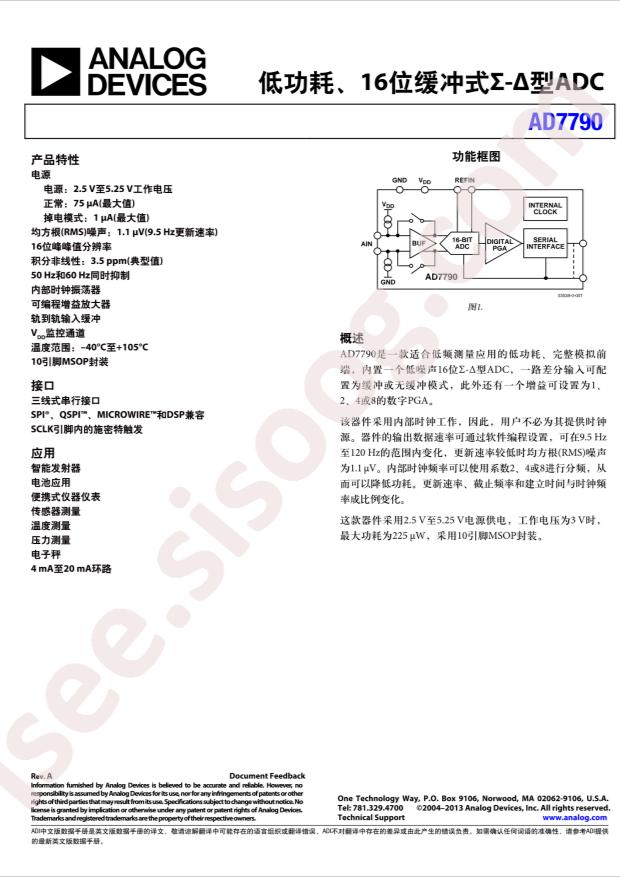

AD7790 20 pages

Technical specifications

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
  • Datasheet: Analog Devices AD7790BRMZ-REEL
  • Interface: SPI;DSP
  • resolution: 16Bit
  • Supply Voltage: 2.5V~5.25V
  • number of channels: 1
  • sampling frequency: 120Hz
  • Operating Temperature: -40°C~+105°C
  • Package: MSOP-10
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Tube
  • Part Status: Obsolete
  • Number of Bits: 16
  • Sampling Rate (Per Second): 120
  • Number of Inputs: 1
  • Input Type: Differential
  • Data Interface: SPI, DSP
  • Configuration: ADC
  • Ratio - S/H:ADC: -
  • Number of A/D Converters: 1
  • Architecture: Sigma-Delta
  • Reference Type: External
  • Voltage - Supply, Analog: 2.5V ~ 5.25V
  • Voltage - Supply, Digital: 2.5V ~ 5.25V
  • Features: PGA
  • Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
  • Supplier Device Package: 10-MSOP
  • Mounting Type: Surface Mount
  • Base Part Number: AD7790
  • detail: 16 Bit Analog to Digital Converter 1 Input 1 Sigma-Delta 10-MSOP
