AD8616ARZ-REEL7 Datasheet

AD8616ARZ-REEL7

Datasheet specifications

Datasheet's name AD8616ARZ-REEL7
File size 100.293 KB
File type pdf
Number of pages 20

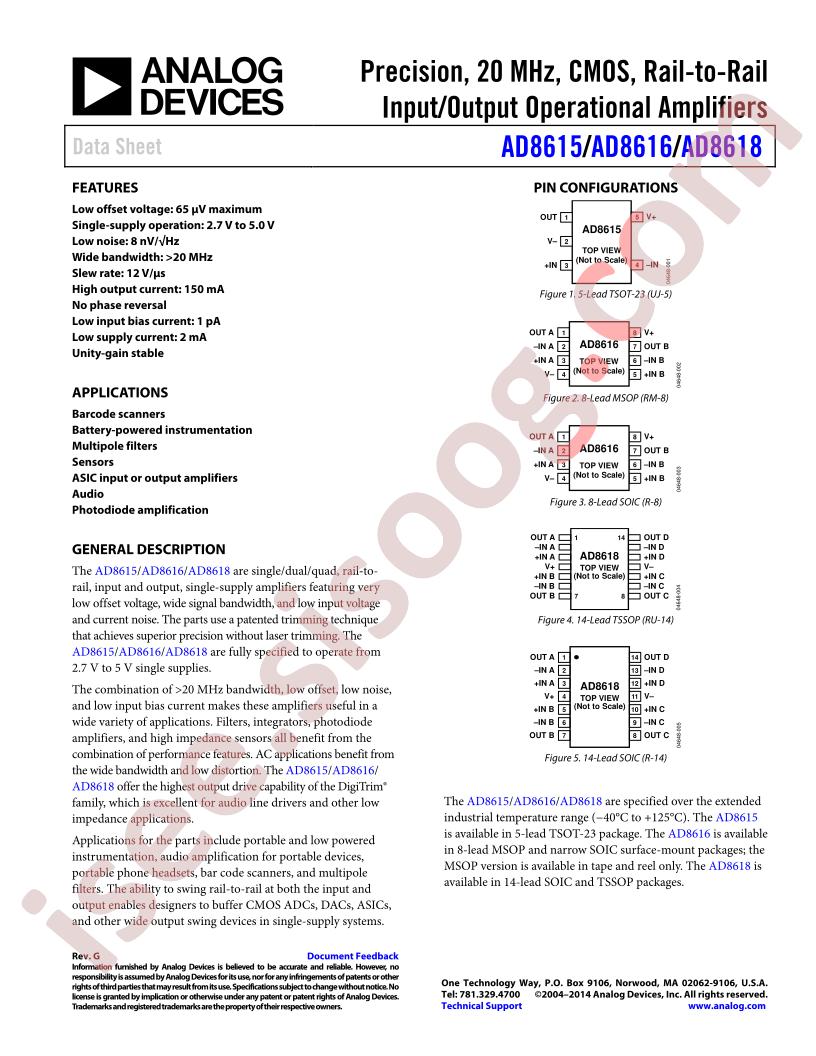

Download Datasheet AD8616ARZ-REEL7

Download Datasheet

Other documentations

AD8615,16,18 20 pages

Technical specifications

  • RoHS: true
  • Category: Operational Amplifier/Comparator/Operational Amplifier
  • Datasheet: Analog Devices AD8616ARZ-REEL7
  • Rail to Rail: 轨到轨
  • -3db Bandwidth: -
  • Output Current: 150mA
  • Operating Temperature: -40°C~+125°C
  • Current - Input Bias(Ib): 0.2pA
  • Gain Bandwidth Product(GBP): 24MHz
  • Package: SOIC-8
  • Manufacturer: Analog Devices
  • Series: DigiTrim®
  • Packaging: Tray
  • Part Status: Obsolete
  • Amplifier Type: General Purpose
  • Number of Circuits: 2
  • Output Type: Rail-to-Rail
  • Slew Rate: 12V/µs
  • Gain Bandwidth Product: 24MHz
  • Current - Input Bias: 0.2pA
  • Voltage - Input Offset: 23µV
  • Current - Supply: 1.7mA
  • Current - Output / Channel: 150mA
  • Voltage - Supply, Single/Dual (±): 2.7V ~ 5.5V, ±1.35V ~ 2.75V
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SOIC
  • Base Part Number: AD8616
  • detail: General Purpose Amplifier 2 Circuit Rail-to-Rail 8-SOIC
