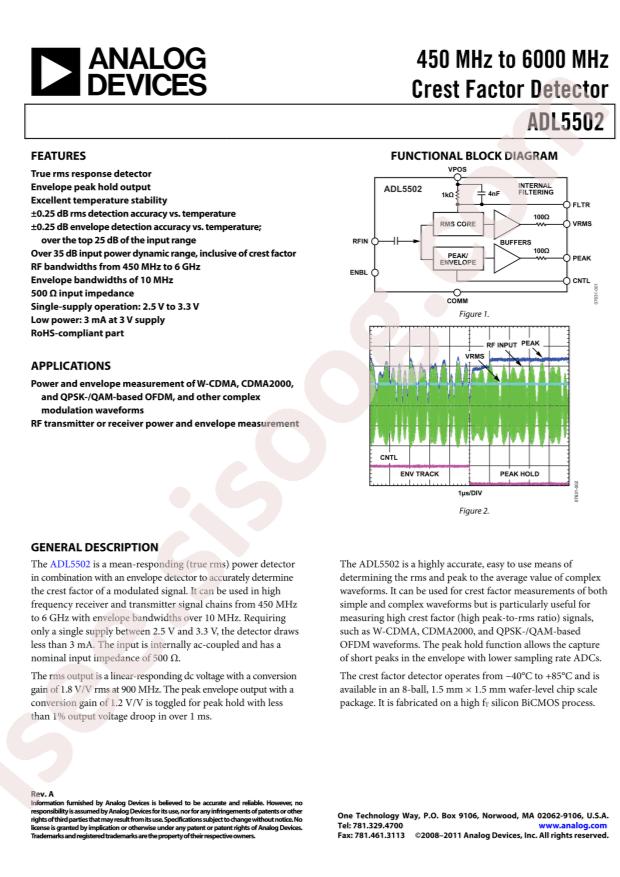

دیتاشیت ADL5502ACBZ-P7
مشخصات دیتاشیت
| نام دیتاشیت |
ADL5502
|
| حجم فایل |
1844.733
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
28
|
مشخصات
-
RoHS:
true
-
Accuracy:
±0.25dB
-
Category:
Radio Frequency Chip/Antenna/RF Detectors
-
Datasheet:
Analog Devices ADL5502ACBZ-P7
-
Input Range:
-15dBm~12dBm
-
Applications:
Cellular,CDMA2000,OFDM,W-CDMA
-
Supply Current:
3mA
-
Supply Voltage:
2.5V~3.3V
-
Frequency Range:
450MHz~6GHz
-
Package:
WLCSP-8
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Frequency:
450MHz ~ 6GHz
-
RF Type:
Cellular, CDMA2000, OFDM, W-CDMA
-
Voltage - Supply:
2.5V ~ 3.3V
-
Current - Supply:
3mA
-
Mounting Type:
Surface Mount
-
Package / Case:
8-UFBGA, WLCSP
-
Supplier Device Package:
8-WLCSP (1.46x1.46)
-
Base Part Number:
ADL5502
-
detail:
RF Detector IC Cellular, CDMA2000, OFDM, W-CDMA 450MHz ~ 6GHz -15dBm ~ 12dBm ±0.25dB 8-UFBGA, WLCSP
