دیتاشیت ADUM1412ARWZ-RL

مشخصات دیتاشیت

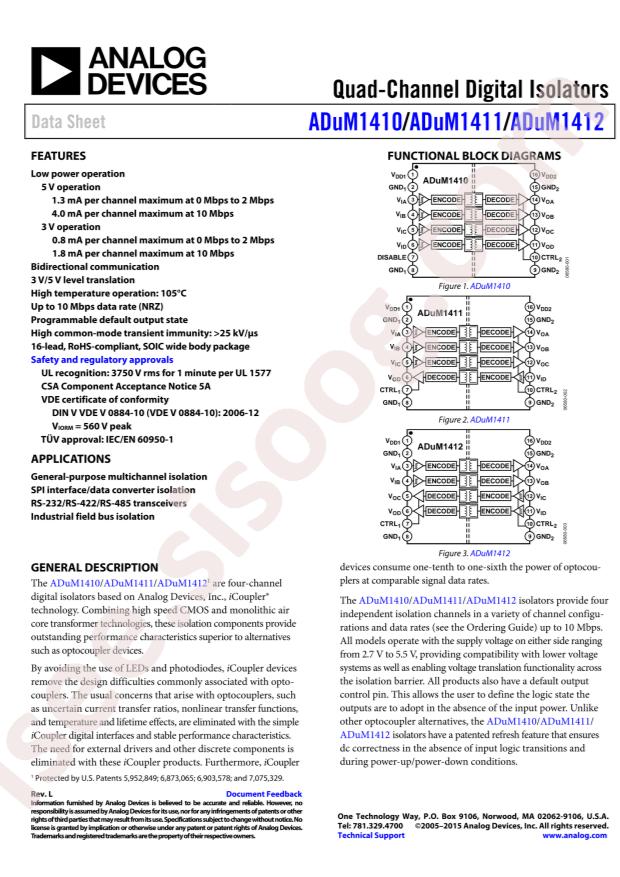

دانلود دیتاشیت ADUM1410-12 Datasheet	ADUM1410-12 Datasheet Datasheet

RoHS: true
Category: Communication Interface Chip/UART/485/232/Digital Isolators
Data Rate: 1Mbps
Datasheet: Analog Devices ADUM1412ARWZ-RL
Applications: General-purpose
Supply Voltage: 2.7V~5.5V
Forward Channel: 2
Reverse channel: 2
Number of Channels: 4
Isolation Technology: Magnetic isolation
Operating Temperature: -40°C~+105°C
Voltage Isolation or Not: 带电压隔离
Package: SOP-16-300mil
Manufacturer: Analog Devices
Series: iCoupler®
Packaging: Cut Tape (CT)
Part Status: Active
Technology: Magnetic Coupling
Type: General Purpose
Isolated Power: No
Inputs - Side 1/Side 2: 2/2
Channel Type: Unidirectional
Voltage - Isolation: 3750Vrms
Common Mode Transient Immunity (Min): 25kV/µs
Propagation Delay tpLH / tpHL (Max): 100ns, 100ns
Pulse Width Distortion (Max): 40ns
Rise / Fall Time (Typ): 2.5ns, 2.5ns
Voltage - Supply: 2.7V ~ 5.5V
Mounting Type: Surface Mount
Package / Case: 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package: 16-SOIC
Base Part Number: ADUM1412
detail: General Purpose Digital Isolator 3750Vrms 4 Channel 1Mbps 25kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
