ADF7023BCPZ-RL دیتاشیت

مشخصات دیتاشیت

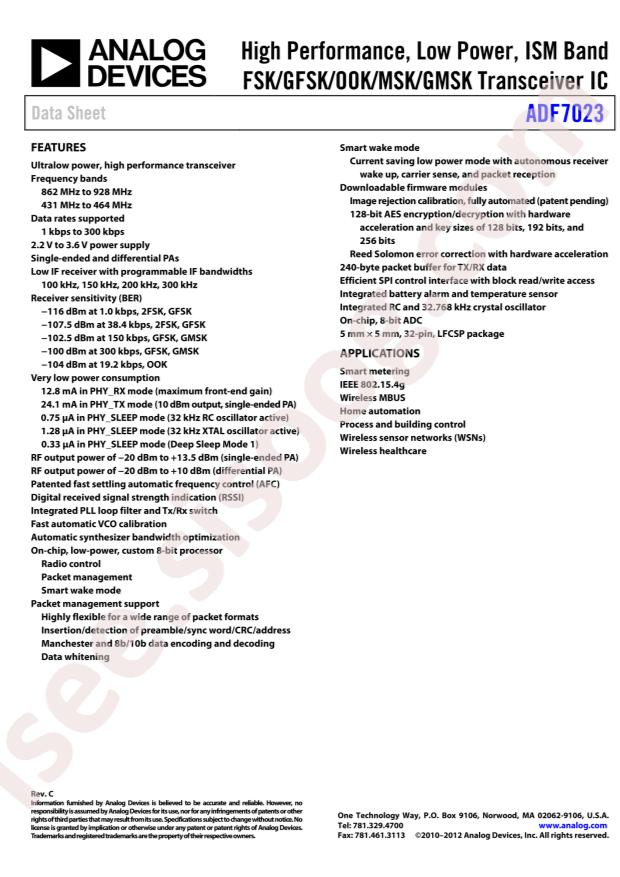

دانلود دیتاشیت ADF7023BCPZ-RL	دانلود دیتاشیت

ADF7023 112 pages

RoHS: true
Category: Radio Frequency Chip/Antenna/RF Transceiver ICs
Datasheet: Analog Devices ADF7023BCPZ-RL
Package: LFCSP-32-EP(5x5)
Manufacturer: Analog Devices
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Type: TxRx + MCU
RF Family/Standard: General ISM < 1GHz
Protocol: -
Modulation: 2FSK, GFSK, GMSK, MSK, OOK
Frequency: 431MHz ~ 464MHz, 862MHz ~ 928MHz
Data Rate (Max): 300kbps
Power - Output: 13.5dBm
Sensitivity: -116dBm
Memory Size: 4kB ROM, 2.5kB RAM
Serial Interfaces: SPI
GPIO: 6
Voltage - Supply: 2.2V ~ 3.6V
Current - Receiving: 12.8mA
Current - Transmitting: 8.7mA ~ 32.1mA
Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount
Package / Case: 32-WFQFN Exposed Pad, CSP
Supplier Device Package: 32-LFCSP-WQ (5x5)
Base Part Number: ADF7023
detail: IC RF TxRx + MCU General ISM < 1GHz 431MHz ~ 464MHz, 862MHz ~ 928MHz 32-WFQFN Exposed Pad, CSP
