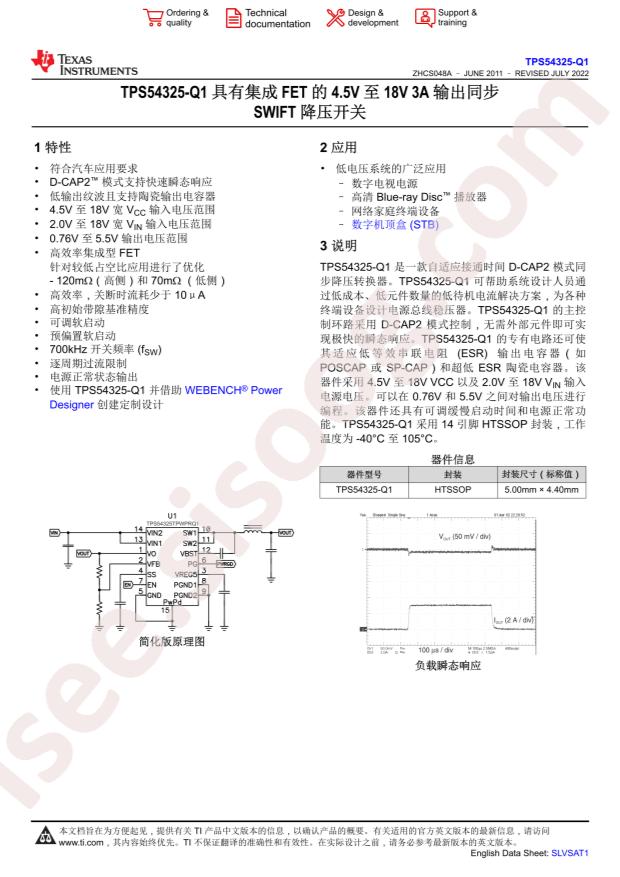

TPS54325TPWPRQ1 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TPS54325TPWPRQ1
|
|
حجم فایل
|
78.832
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
31
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Datasheet:
Texas Instruments TPS54325TPWPRQ1
-

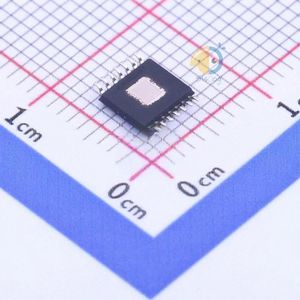

Package:
TSSOP-14-EP
-
Manufacturer:
Texas Instruments
-
Series:
Automotive, AEC-Q100, SWIFT™, D-CAP2™
-
Topology:
Buck
-
Voltage - Input (Min):
2V
-
Base Part Number:
TPS543
-
Function:
Step-Down
-
Current - Output:
3A
-
Frequency - Switching:
700kHz
-
Part Status:
Active
-
Voltage - Input (Max):
18V
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
14-HTSSOP
-
Operating Temperature:
-40°C ~ 105°C (TA)
-
Voltage - Output (Min/Fixed):
0.76V
-
Package / Case:
14-PowerTSSOP (0.173", 4.40mm Width)
-
Voltage - Output (Max):
5.5V
-
Packaging:
Digi-Reel®
-
Output Configuration:
Positive
-
Synchronous Rectifier:
Yes
-
Output Type:
Adjustable
-
Number of Outputs:
1
-
detail:
Buck Switching Regulator IC Positive Adjustable 0.76V 1 Output 3A 14-PowerTSSOP (0.173", 4.40mm Width)
