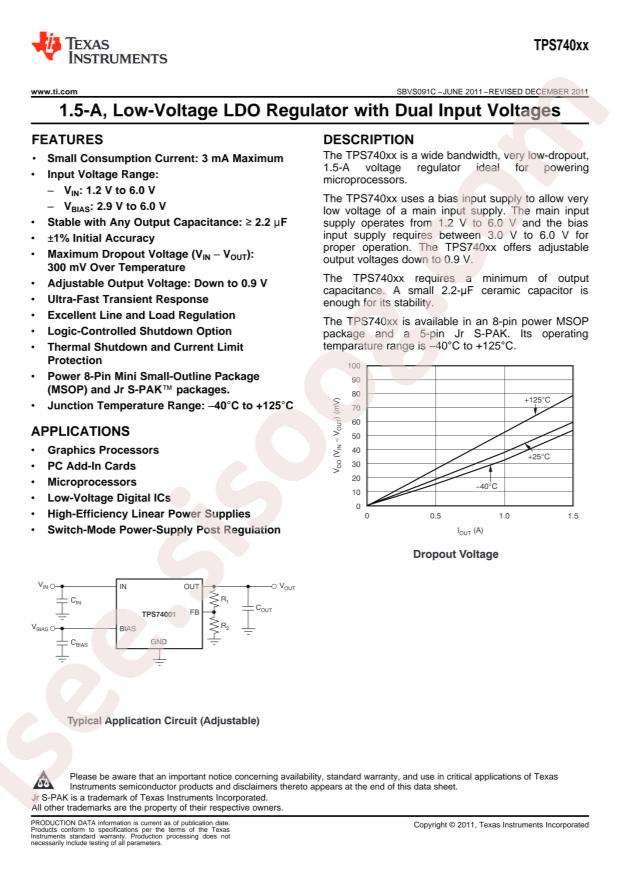

TPS74012DGKR دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TPS74012DGKR
|
|
حجم فایل
|
90.651
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
25
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
Texas Instruments TPS74012DGKR
-
Package:
VSSOP-8-0.65mm
-
Manufacturer:
Texas Instruments
-
Series:
-
-
Voltage Dropout (Max):
0.3V @ 1.5A
-
Package / Case:
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
-
Base Part Number:
TPS740
-
Supplier Device Package:
8-VSSOP
-
Current - Output:
1.5A
-
Current - Quiescent (Iq):
3mA
-
Part Status:
Active
-
Voltage - Input (Max):
6V
-
Mounting Type:
Surface Mount
-
Control Features:
Enable
-
Protection Features:
Over Current, Over Temperature, Under Voltage Lockout (UVLO)
-
Operating Temperature:
-40°C ~ 125°C
-
Voltage - Output (Min/Fixed):
1.2V
-
PSRR:
-
-
Voltage - Output (Max):
-
-
Packaging:
Cut Tape (CT)
-
Output Configuration:
Positive
-
Number of Regulators:
1
-
Output Type:
Fixed
-
detail:
Linear Voltage Regulator IC 1 Output 1.5A 8-VSSOP
