دیتاشیت ADR03TKSZ-EP-R7
مشخصات دیتاشیت
| نام دیتاشیت |
ADR03-EP
|
| حجم فایل |
165.665
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
6
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Voltage References
-
Datasheet:

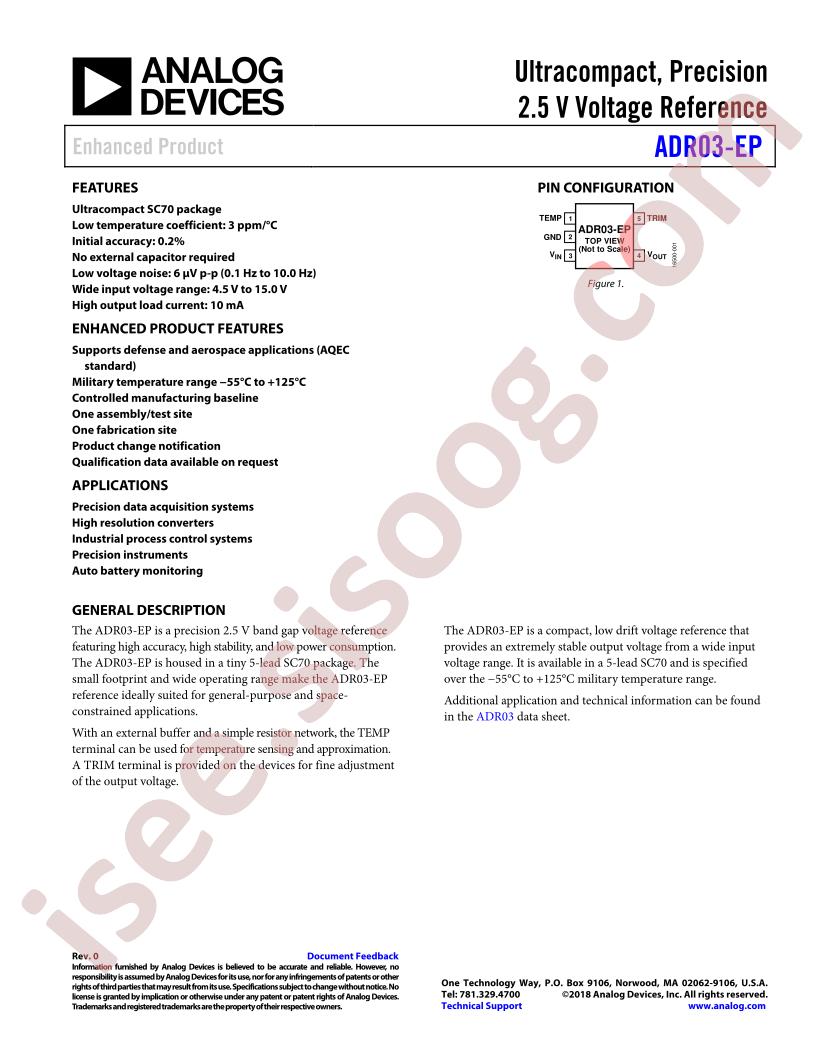

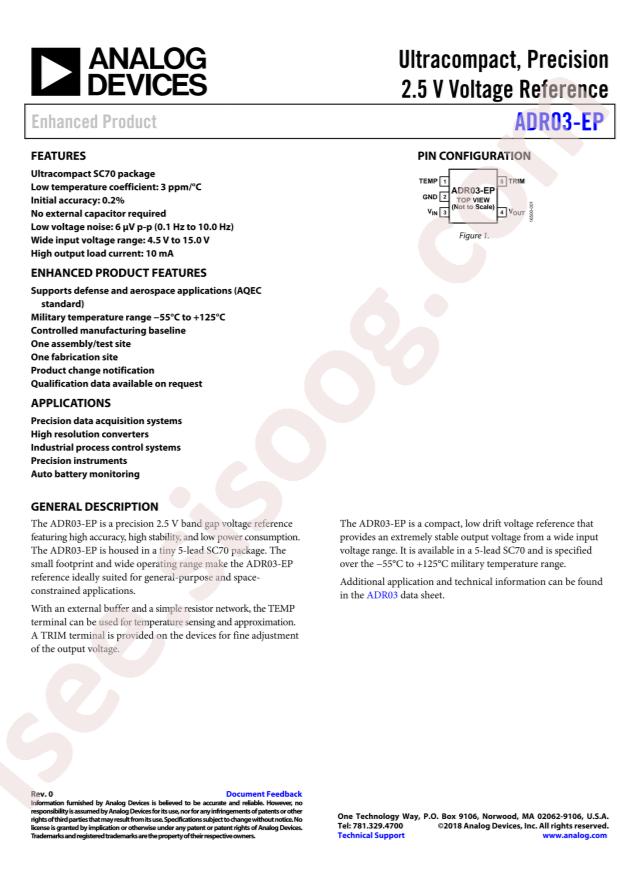

Analog Devices ADR03TKSZ-EP-R7
-
Tolerance:
±0.2%
-
Output Type:
Fixed
-
Input Voltage:
4.5V~15V
-
Output Current:
10mA
-
Output Voltage:
2.5V
-
Reference Type:
series connection
-
Supply Current:
650uA
-
Noise - 10Hz to 10kHz:
-
-
Operating Temperature:
-55°C~+125°C
-
Noise - 1/10Hz to 10Hz:
6uVp-p
-
Temperature Coefficient:
30ppm/°C
-
Package:
SC-70-5
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Voltage - Output (Min/Fixed):
2.5V
-
Current - Output:
10mA
-
Noise - 0.1Hz to 10Hz:
6µVp-p
-
Voltage - Input:
4.5V ~ 15V
-
Current - Supply:
650µA
-
Mounting Type:
Surface Mount
-
Package / Case:
5-TSSOP, SC-70-5, SOT-353
-
Supplier Device Package:
SC-70-5
-
Base Part Number:
ADR03
-
detail:
Series Voltage Reference IC ±0.2% SC-70-5
