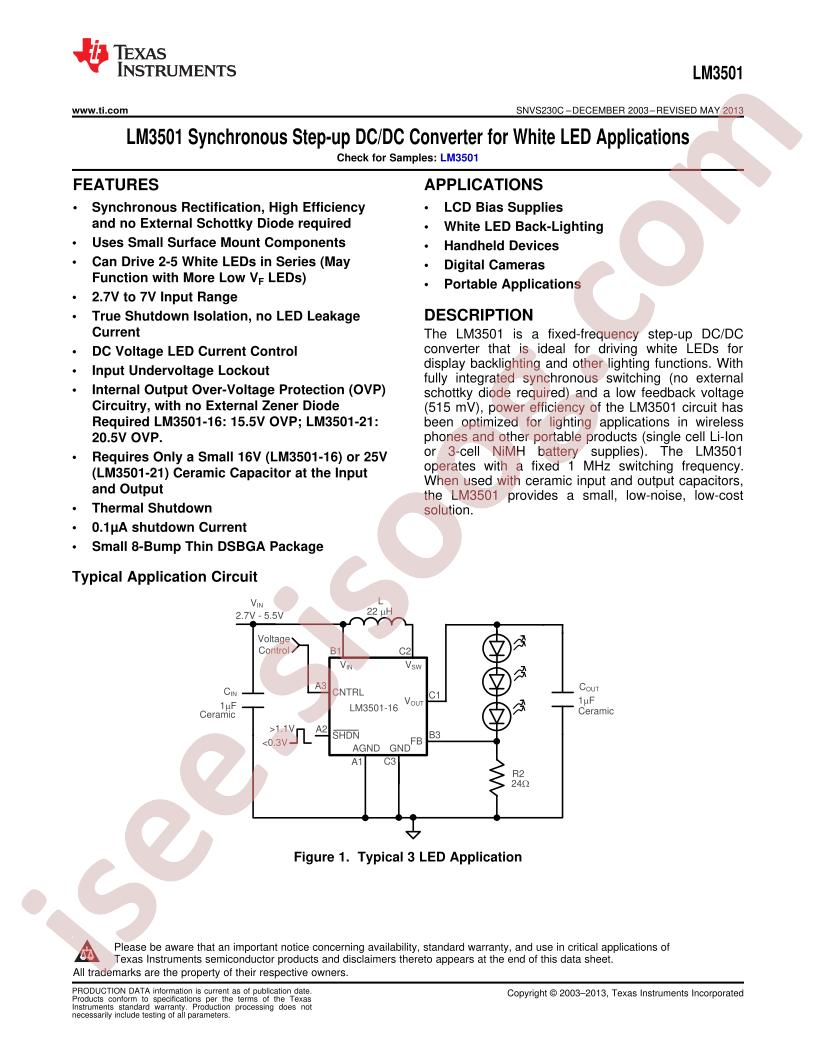

LM3501TL-16/NOPB Datasheet
Datasheet specifications
| Datasheet's name | LM3501TL-16/NOPB |
|---|---|
| File size | 87.769 KB |
| File type | |
| Number of pages | 26 |
Download Datasheet LM3501TL-16/NOPB |
Download Datasheet |
|---|
Other documentations
LM3501 27 pages
Technical specifications
- RoHS: true
- Type: DC-DCVoltage Stabilizer
- Category: Nixie Tube Driver/LED Driver/LED Drivers
- Channels: 1
- Topology: boost converter
- Datasheet: Texas Instruments LM3501TL-16/NOPB
- Input Voltage: 2.7V~7V
- Output Current: 400mA
- Output Voltage: 16V
- Switch Frequency: 1MHz
- Operating temperature: -40°C~+125°C
- Package: BGA-8
- Manufacturer: Texas Instruments
- Series: -
- Package / Case: 8-WFBGA
- Frequency: 1MHz
- Number of Outputs: 1
- Part Status: Active
- Mounting Type: Surface Mount
- Internal Switch(s): Yes
- Applications: Backlight
- Voltage - Supply (Min): 2.7V
- Current - Output / Channel: 400mA (Switch)
- Voltage - Output: 16V
- Packaging: Cut Tape (CT)
- Base Part Number: LM3501
- Supplier Device Package: 8-uSMD
- Voltage - Supply (Max): 7V
- Dimming: -
- detail: LED Driver IC 1 Output DC DC Regulator Step-Up (Boost) Dimming 400mA (Switch) 8-uSMD
