دیتاشیت MSP430G2230QDREP
مشخصات دیتاشیت
| نام دیتاشیت | MSP430G2230-EP Datasheet |
|---|---|
| حجم فایل | 1162.109 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 40 |

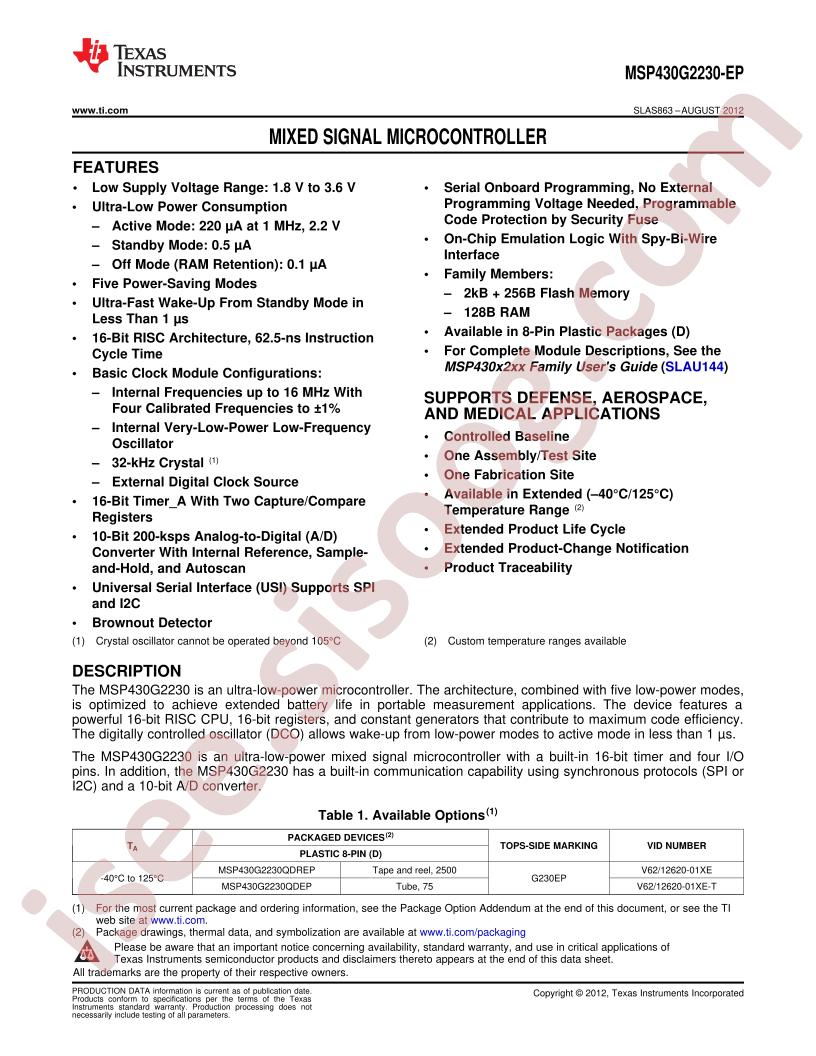

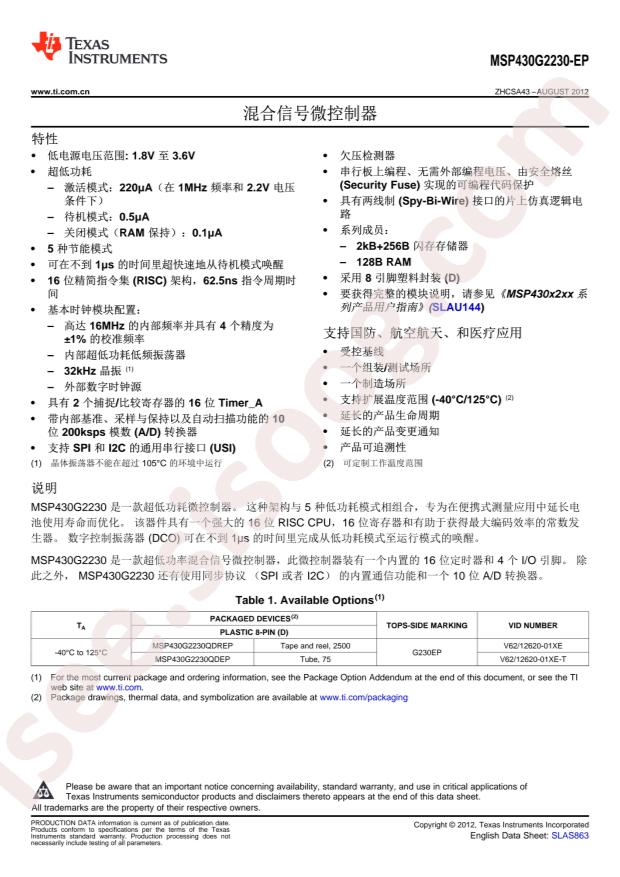

دانلود دیتاشیت MSP430G2230-EP Datasheet |
MSP430G2230-EP Datasheet Datasheet |
|---|
مشخصات
- CAN: -
- I2C: -
- I2S: -
- SPI: -
- RoHS: true
- EEPROM: -
- CPU Core: MSP430
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 128Byte
- Watchdog: Yes
- ADC (Bit): 10bit
- DAC (Bit): -
- Datasheet: Texas Instruments MSP430G2230QDREP
- PWM (Bit): -
- 8Bit Timer: -
- UART/USART: -
- 16Bit Timer: -
- 32Bit Timer: -
- Real-Time Clock: -
- CPU Maximum Speed: 16MHz
- GPIO Ports Number: 4
- Low-Voltage Detect: -
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: DMA;WDT
- Program Memory Type: FLASH
- Direct Memory Access: Yes
- Program Storage Size: 2KB
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: 1.8V~3.6V
- Infrared Data Association: -
- Operating Temperature Range: -40°C~+125°C
- Secure Digital Input and Output: -
- Package: SOP-8
- Manufacturer: Texas Instruments
- Peripherals: Brown-out Detect/Reset, DMA, PWM, WDT
- Voltage - Supply (Vcc/Vdd): 1.8V ~ 3.6V
- Base Part Number: 430G2230
- Speed: 16MHz
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- EEPROM Size: -
- Supplier Device Package: 8-SOIC
- Series: MSP430G2xx
- Operating Temperature: -40°C ~ 125°C (TA)
- Number of I/O: 4
- Oscillator Type: Internal
- Part Status: Active
- Mounting Type: Surface Mount
- Core Size: 16-Bit
- Connectivity: I²C, SPI, USI
- Program Memory Size: 2KB (2K x 8 + 256B)
- Core Processor: MSP430
- Packaging: Tape & Reel (TR)
- Data Converters: A/D 4x10b
- detail: MSP430 MSP430G2xx Microcontroller IC 16-Bit 16MHz 2KB (2K x 8 + 256B) FLASH 8-SOIC
