دیتاشیت RN4020BCN-V/RM120
مشخصات دیتاشیت
| نام دیتاشیت | RN4020 |
|---|---|
| حجم فایل | 1251.228 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 28 |
دانلود دیتاشیت RN4020 |

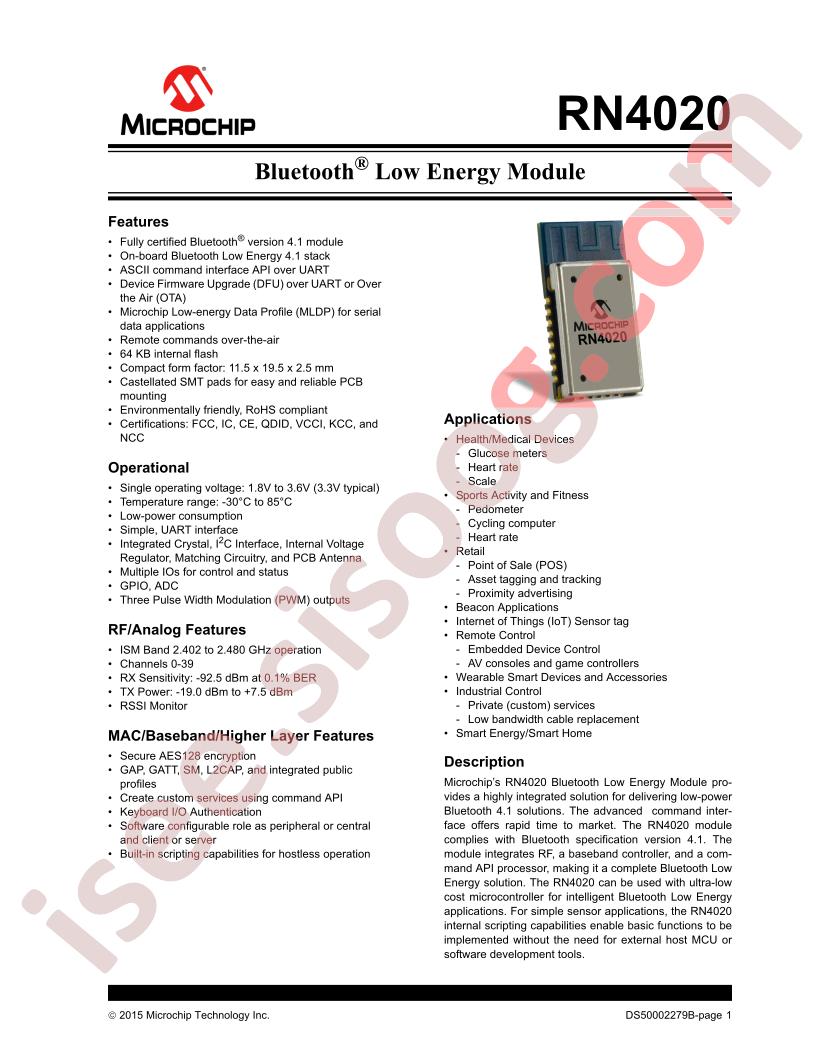

RN4020 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: IoT/Communication Modules/Bluetooth Modules
- Datasheet: Microchip Tech RN4020BCN-V/RM120
- Support Interface: I2C;SPI;UART
- Output Power (Max): 7.5dBm
- Package: -
- Manufacturer: Microchip Tech
- Series: -
- Packaging: Tray
- Part Status: Active
- RF Family/Standard: Bluetooth
- Protocol: Bluetooth v4.1
- Modulation: GFSK
- Frequency: 2.4GHz
- Data Rate: 1Mbps
- Power - Output: 7.5dBm
- Sensitivity: -92.5dBm
- Serial Interfaces: I²C, SPI, UART
- Antenna Type: Integrated, Trace
- Utilized IC / Part: -
- Memory Size: 64kB Flash
- Voltage - Supply: 1.8V ~ 3.6V
- Current - Receiving: 16mA
- Current - Transmitting: 33.6mA
- Mounting Type: Surface Mount
- Operating Temperature: -30°C ~ 85°C
- Package / Case: Module
- Firmware Version: 1.2
- Base Part Number: RN4020
- detail: Bluetooth Bluetooth v4.1 Transceiver Module 2.4GHz Integrated, Trace Surface Mount
