ADG5248FBRUZ دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت ADG5248FBRUZ	دانلود دیتاشیت

RoHS: true
Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers

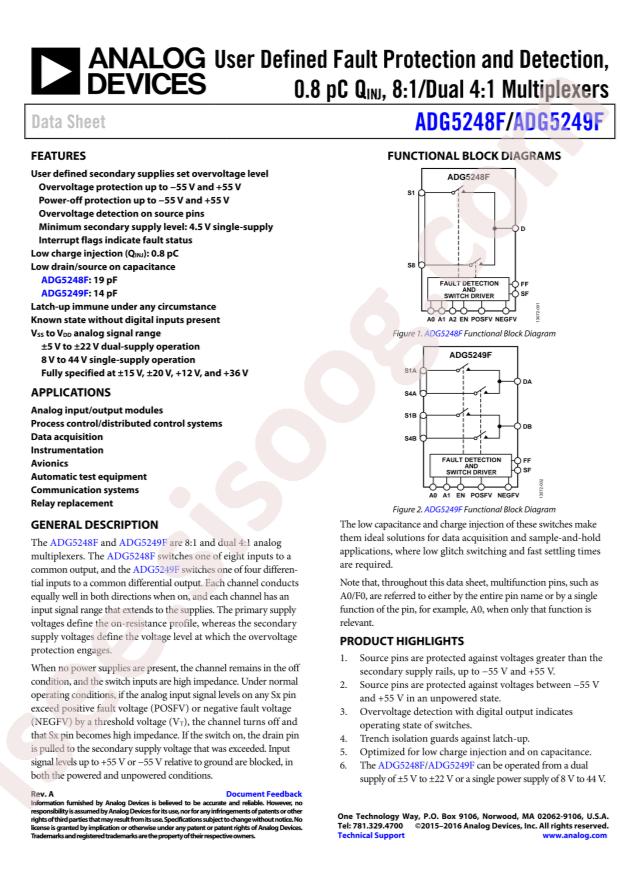

Datasheet: Analog Devices ADG5248FBRUZ
Turn-on time: 245ns
Turn-off time: 135ns
Supply Voltage: 8V~44V
Number of Channels: 1
On-State Resistance (Max): 335Ω
Package: TSSOP-20
Manufacturer: Analog Devices
Series: -
Packaging: Tube
Part Status: Active
Switch Circuit: -
Multiplexer/Demultiplexer Circuit: 8:1
Number of Circuits: 1
Channel-to-Channel Matching (ΔRon): 3Ohm
Voltage - Supply, Single (V+): 8V ~ 44V
Voltage - Supply, Dual (V±): ±5V ~ 22V
Switch Time (Ton, Toff) (Max): 245ns, 135ns
-3db Bandwidth: 200MHz
Charge Injection: -1.2pC
Channel Capacitance (CS(off), CD(off)): 4pF, 13pF
Current - Leakage (IS(off)) (Max): 1nA
Crosstalk: -75dB @ 1MHz
Operating Temperature: -40°C ~ 125°C (TA)
Mounting Type: Surface Mount
Package / Case: 20-TSSOP (0.173", 4.40mm Width)
Supplier Device Package: 20-TSSOP
Base Part Number: ADG5248
detail: 1 Circuit IC Switch 8:1 335Ohm 20-TSSOP
