دیتاشیت TPS2114PWG4

TPS2114/15

مشخصات دیتاشیت

نام دیتاشیت TPS2114/15
حجم فایل 1200.447 کیلوبایت
نوع فایل pdf
تعداد صفحات 24

دانلود دیتاشیت TPS2114/15

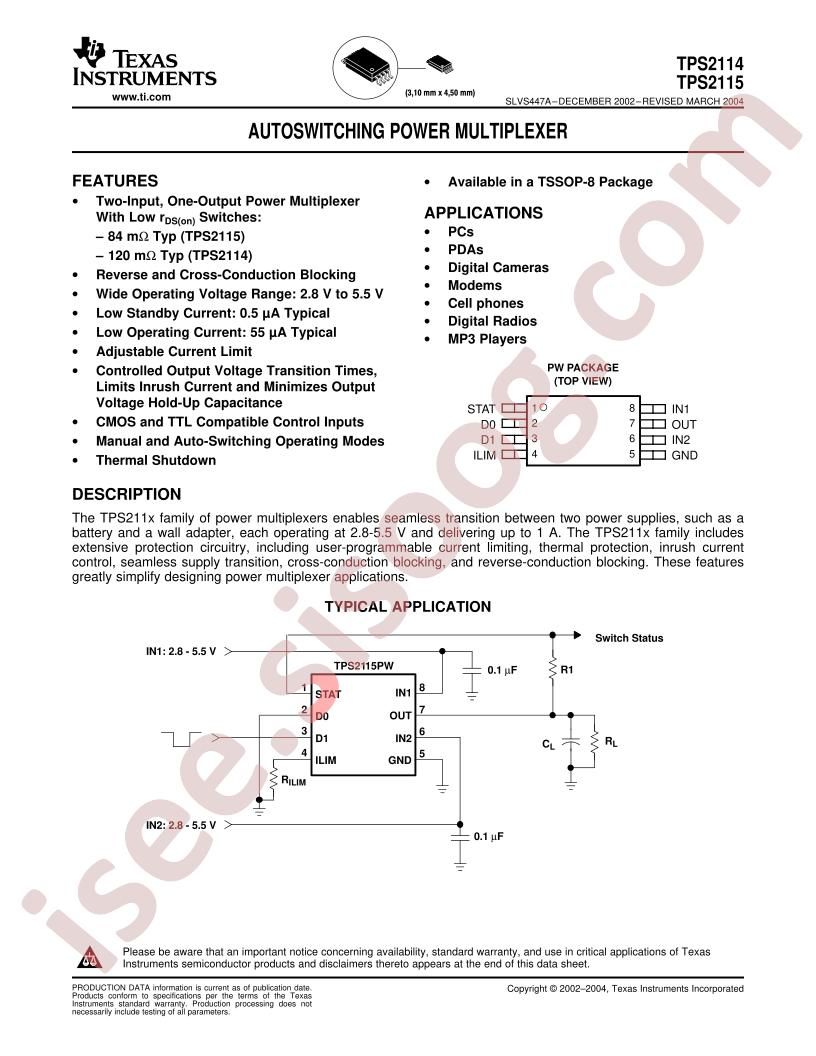

TPS2114/15 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Monitors & Reset Circuits
  • Datasheet: Texas Instruments TPS2114PWG4
  • Operating Temperature: -40°C~+85°C
  • Package: TSSOP-8
  • Manufacturer: Texas Instruments
  • Series: -
  • Type: Source Selector Switch
  • Package / Case: 8-TSSOP (0.173", 4.40mm Width)
  • Applications: Handheld/Mobile Devices
  • Delay Time - ON: 500µs
  • Current - Supply: 55µA
  • Delay Time - OFF: 3ms
  • Part Status: Active
  • Base Part Number: TPS211
  • Mounting Type: Surface Mount
  • Internal Switch(s): Yes
  • Ratio - Input:Output: 2:1
  • Voltage - Supply: 2.8V ~ 5.5V
  • Packaging: Tube
  • Current - Output (Max): 750mA
  • Supplier Device Package: 8-TSSOP
  • FET Type: N-Channel
  • detail: OR Controller Source Selector Switch N-Channel 2:1 8-TSSOP
