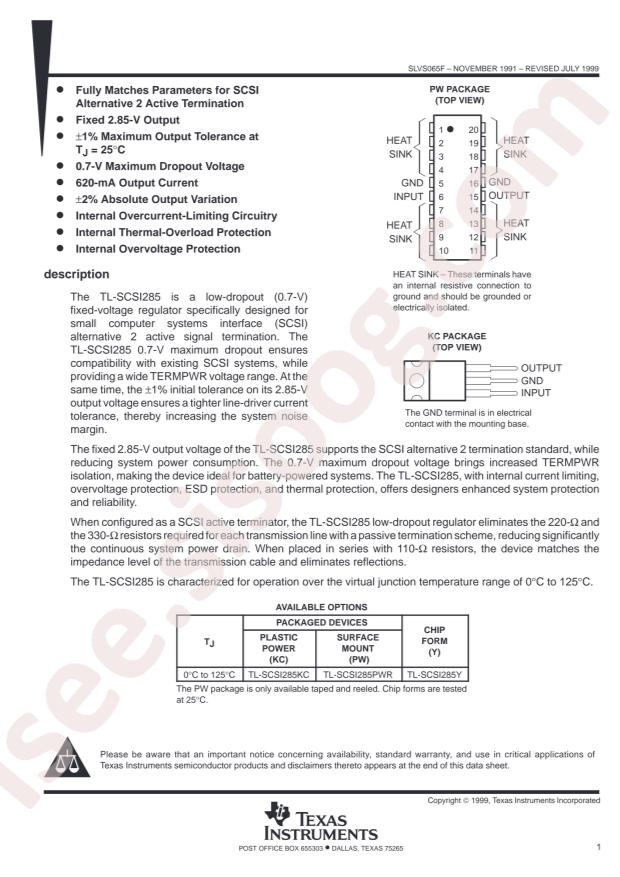

TL-SCSI285KCSE3 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TL-SCSI285KCSE3
|
|
حجم فایل
|
93.252
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
12
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
Texas Instruments TL-SCSI285KCSE3
-
Output Current:
620mA
-
Output Voltage:
2.85V
-
Dropout Voltage:
0.8V@(620mA)
-
Output Polarity:
positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
5.5V
-
Operating Temperature:
0°C~+125°C
-
Power Supply Rejection Ratio (PSRR):
62dB@(120Hz)
-
Package:
TO-220
-
Manufacturer:
Texas Instruments
-
Series:
-
-
Voltage Dropout (Max):
0.8V @ 620mA
-
Package / Case:
TO-220-3
-
Base Part Number:
TL-SCSI285
-
Supplier Device Package:
TO-220-3
-
Current - Output:
620mA
-
PSRR:
62dB (120Hz)
-
Part Status:
Obsolete
-
Voltage - Input (Max):
5.5V
-
Mounting Type:
Through Hole
-
Control Features:
-
-
Protection Features:
Over Current, Over Temperature, Over Voltage
-
Voltage - Output (Min/Fixed):
2.85V
-
Voltage - Output (Max):
-
-
Packaging:
Tube
-
Output Configuration:
Positive
-
Number of Regulators:
1
-
Output Type:
Fixed
-
detail:
Linear Voltage Regulator IC 1 Output 620mA TO-220-3
