TPS65280RGER دیتاشیت

TPS65280RGER

مشخصات دیتاشیت

نام دیتاشیت TPS65280RGER
حجم فایل 108.456 کیلوبایت
نوع فایل pdf
تعداد صفحات 35

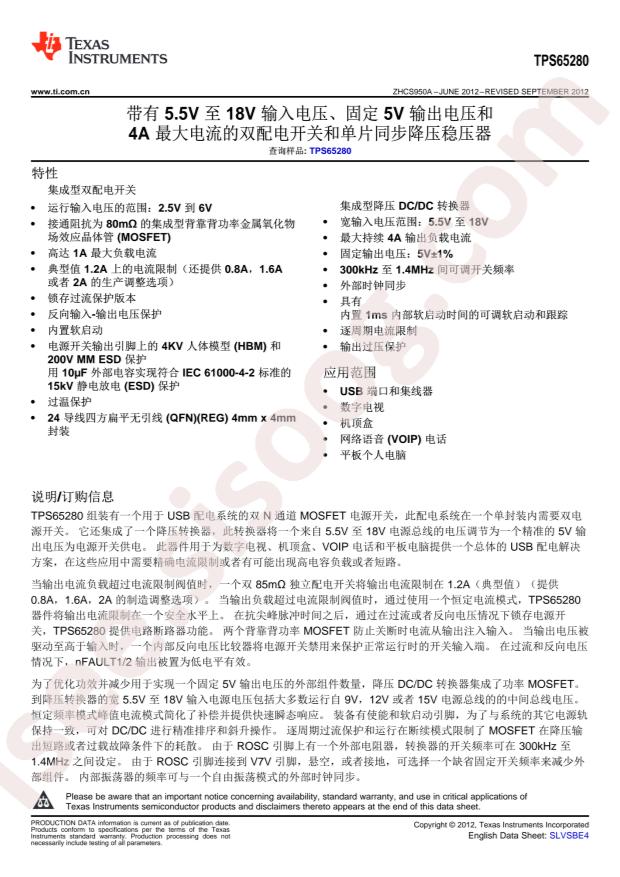

مشاهده دیتاشیت TPS65280RGER

دانلود دیتاشیت

سایر مستندات

TPS65280 35 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Power Distribution Switches
  • Datasheet: Texas Instruments TPS65280RGER
  • Input Voltage: 5.5V~18V
  • Output Current: 4A
  • Number of Outputs: 2
  • Resistor On-State: 80mΩ
  • Operating Temperature -: -40°C~+125°C
  • Package: VQFN-24-EP(4x4)
  • Manufacturer: Texas Instruments
  • Voltage - Supply (Vcc/Vdd): Not Required
  • Base Part Number: TPS652
  • Operating Temperature: -40°C ~ 125°C (TJ)
  • Package / Case: 24-VFQFN Exposed Pad
  • Ratio - Input:Output: 1:2
  • Current - Output (Max): 4A
  • Voltage - Load: 5.5V ~ 18V
  • Series: -
  • Rds On (Typ): 80mOhm
  • Supplier Device Package: 24-VQFN (4x4)
  • Fault Protection: Current Limiting (Fixed), Over Temperature
  • Output Configuration: High Side
  • Part Status: Discontinued at Digi-Key
  • Mounting Type: Surface Mount
  • Interface: On/Off
  • Switch Type: USB Switch
  • Packaging: Cut Tape (CT)
  • Input Type: -
  • Features: Slew Rate Controlled, Status Flag
  • Output Type: N-Channel
  • detail: Power Switch/Driver 1:2 N-Channel 4A 24-VQFN (4x4)
