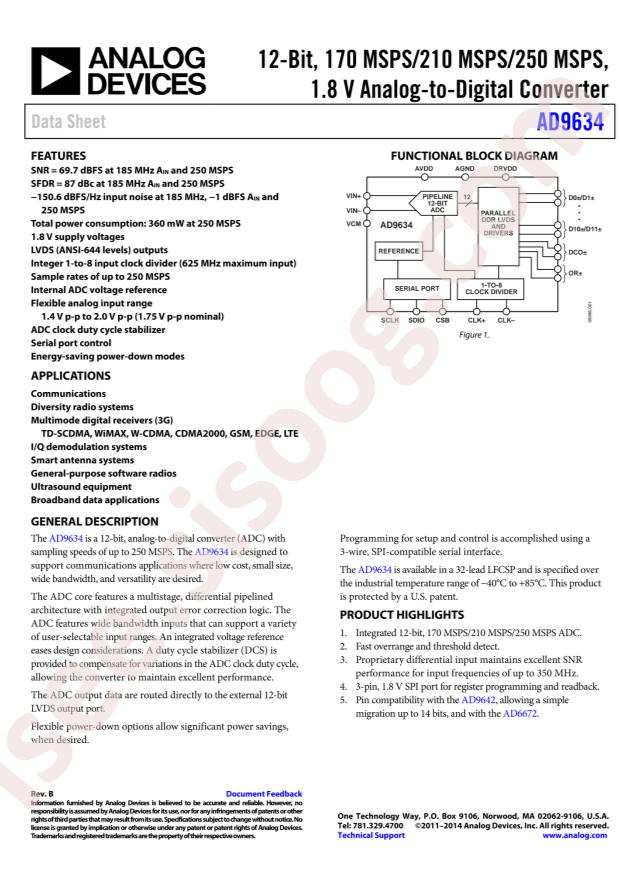

AD9634BCPZ-170 数据手册
其他文档
AD9634 30 pages
技术规格
- RoHS: true
- Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
- Datasheet: Analog Devices AD9634BCPZ-170
- Interface: Parallel
- resolution: 12Bit
- Supply Voltage: 1.7V~1.9V
- differential input: Yes
- number of channels: 1
- sampling frequency: 170MHz
- Operating Temperature: -40°C~+85°C
- Package: LFCSP-32
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tray
- Part Status: Active
- Number of Bits: 12
- Sampling Rate (Per Second): 170M
- Number of Inputs: 1
- Input Type: Differential
- Data Interface: LVDS - Parallel
- Configuration: S/H-ADC
- Ratio - S/H:ADC: 1:1
- Number of A/D Converters: 1
- Architecture: Pipelined
- Reference Type: Internal
- Voltage - Supply, Analog: 1.7V ~ 1.9V
- Voltage - Supply, Digital: 1.7V ~ 1.9V
- Features: -
- Package / Case: 32-WFQFN Exposed Pad, CSP
- Supplier Device Package: 32-LFCSP (5x5)
- Mounting Type: Surface Mount
- Base Part Number: AD9634
- detail: 12 Bit Analog to Digital Converter 1 Input 1 Pipelined 32-LFCSP (5x5)
