REG102GA-3G4 Datasheet

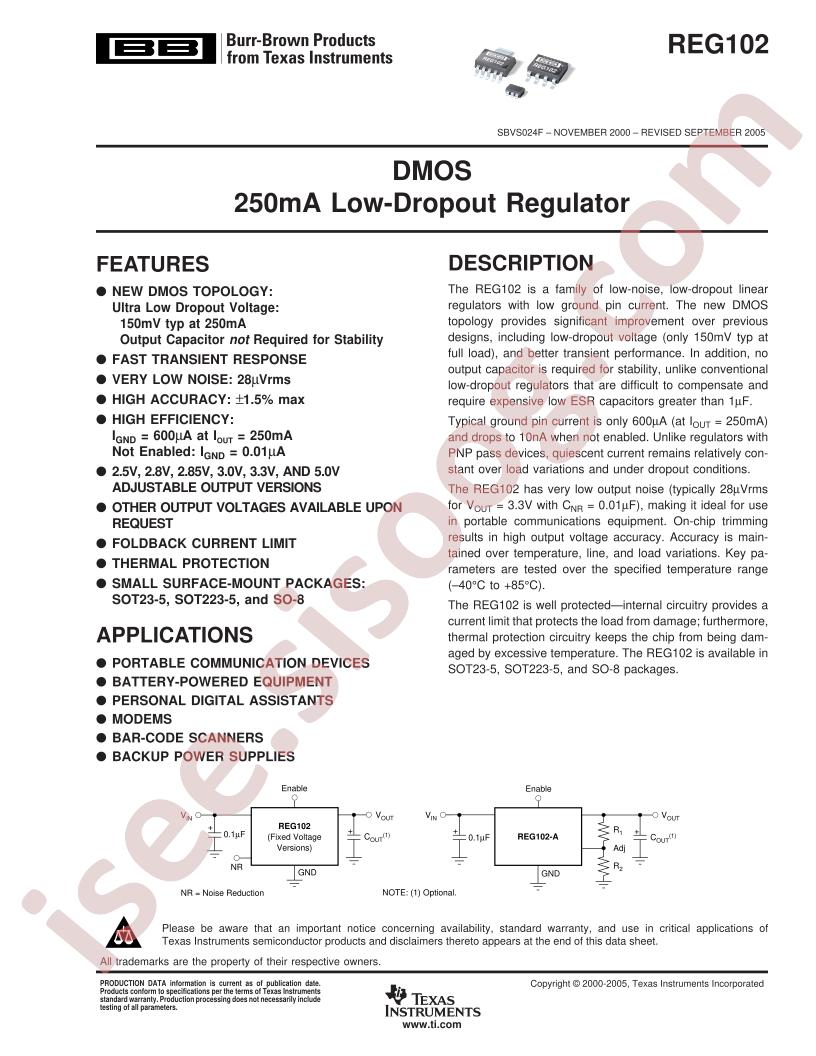

REG102 Datasheet

Datasheet specifications

Datasheet's name REG102 Datasheet
File size 1431.436 KB
File type pdf
Number of pages 28

Download Datasheet REG102 Datasheet

Download Datasheet

Other documentations

No other documentation was found!

Technical specifications

  • Voltage Dropout (Max): 0.27V @ 250mA
  • Current - Supply (Max): 800µA
  • Current - Output: 250mA
  • Current - Quiescent (Iq): 500µA
  • Voltage - Input (Max): 10V
  • Base Part Number: REG102
  • Operating Temperature: -40°C ~ 85°C
  • Package / Case: SOT-223-6
  • Voltage - Output (Max): -
  • Output Configuration: Positive
  • Series: -
  • Supplier Device Package: SOT-223-6
  • PSRR: 65dB (120Hz)
  • Part Status: Active
  • Mounting Type: Surface Mount
  • Control Features: Enable
  • Protection Features: Over Current, Over Temperature
  • Voltage - Output (Min/Fixed): 3V
  • Manufacturer: Texas Instruments
  • Number of Regulators: 1
  • Packaging: Tube
  • Output Type: Fixed
  • detail: Linear Voltage Regulator IC 1 Output 250mA SOT-223-6
