دیتاشیت AD688ARWZ

AD688

مشخصات دیتاشیت

نام دیتاشیت AD688
حجم فایل 495.342 کیلوبایت
نوع فایل pdf
تعداد صفحات 16

دانلود دیتاشیت AD688

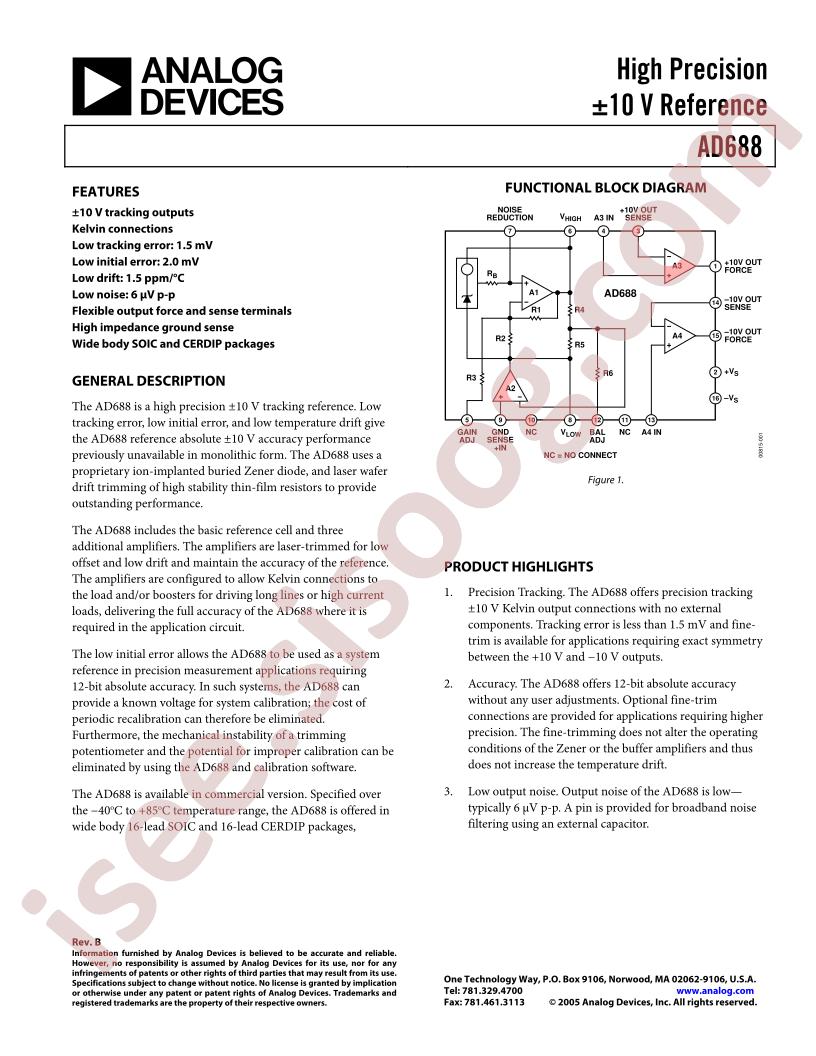

AD688 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Voltage References
  • Datasheet: Analog Devices AD688ARWZ
  • Tolerance: ±0.04%
  • Output Type: Fixed
  • Input Voltage: 12V~38V
  • Output Current: 10mA
  • Output Voltage: 10V
  • Reference Type: series connection
  • Supply Current: 12mA
  • Noise - 10Hz to 10kHz: -
  • Operating Temperature: -40°C~+85°C@(Ta)
  • Noise - 1/10Hz to 10Hz: 6uVp-p
  • Temperature Coefficient: 8ppm/°C
  • Package: SOP-16-300mil
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Voltage - Output (Min/Fixed): ±10V
  • Current - Output: 10mA
  • Noise - 0.1Hz to 10Hz: 6µVp-p
  • Voltage - Input: 12V ~ 38V
  • Current - Supply: 12mA
  • Mounting Type: Surface Mount
  • Package / Case: 16-SOIC (0.295", 7.50mm Width)
  • Supplier Device Package: 16-SOIC
  • Base Part Number: AD688
  • detail: Series Voltage Reference IC ±0.04% 16-SOIC
