دیتاشیت AD8522ARZ-REEL

AD8522

مشخصات دیتاشیت

نام دیتاشیت AD8522
حجم فایل 246.667 کیلوبایت
نوع فایل pdf
تعداد صفحات 8

دانلود دیتاشیت AD8522

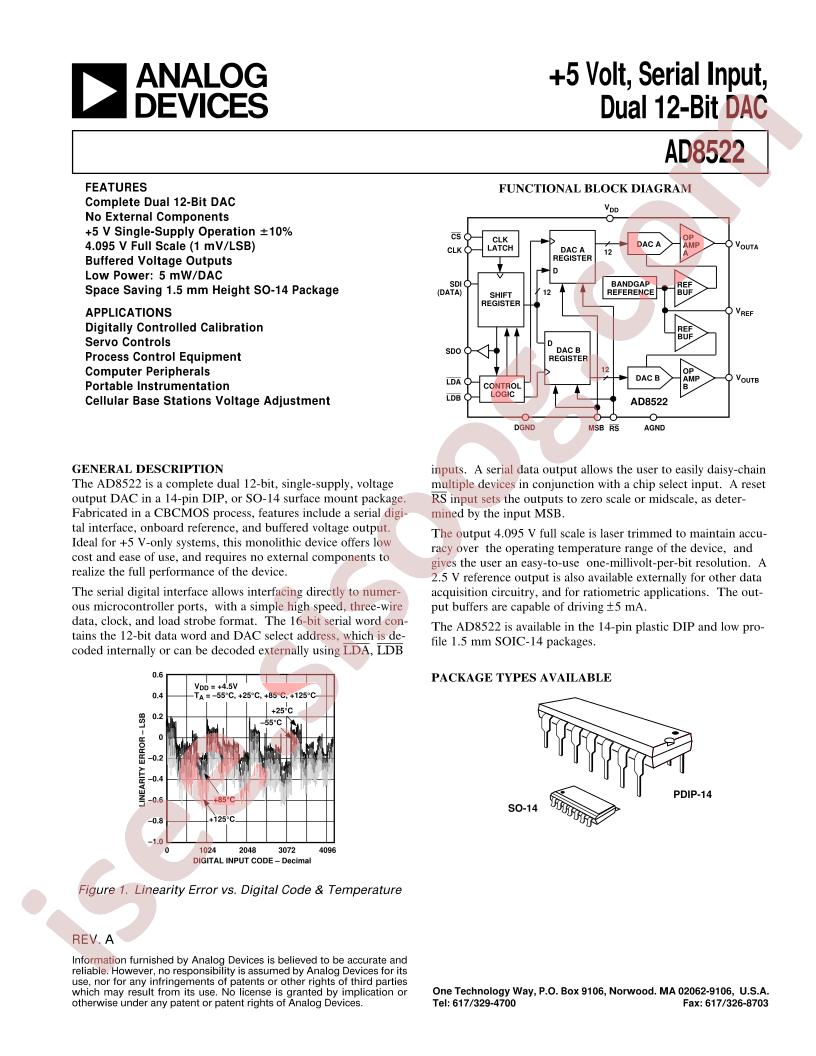

AD8522 Datasheet

مشخصات

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
  • Datasheet: Analog Devices AD8522ARZ-REEL
  • Interface: SPI
  • Resolution: 12Bit
  • Output Type: Voltage-缓冲
  • Settling Time: 16us
  • Supply Voltage: 5V
  • Integral nonlinearity: ±0.5LSB
  • Operating Temperature: -40°C~+85°C
  • Package: SOP-14
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Tube
  • Part Status: Obsolete
  • Number of Bits: 12
  • Number of D/A Converters: 2
  • Differential Output: No
  • Data Interface: SPI
  • Reference Type: Internal
  • Voltage - Supply, Analog: 5V
  • Voltage - Supply, Digital: 5V
  • INL/DNL (LSB): ±0.5, ±0.5
  • Architecture: R-2R
  • Package / Case: 14-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 14-SO
  • Mounting Type: Surface Mount
  • Base Part Number: AD8522
  • detail: 12 Bit Digital to Analog Converter 2 14-SO
