دیتاشیت AD5755ACPZ-REEL7
مشخصات دیتاشیت
| نام دیتاشیت |

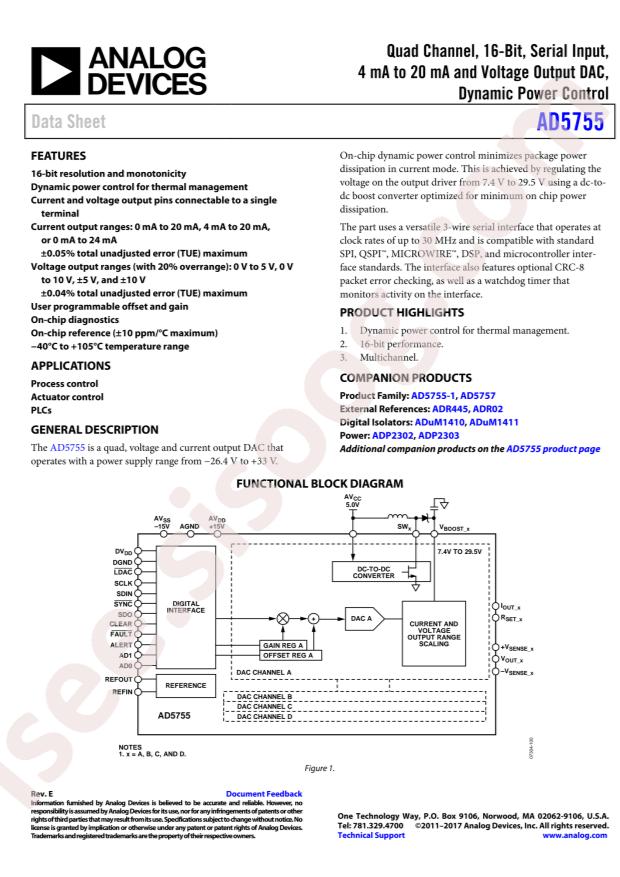

AD5755
|
| حجم فایل |
1667.79
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
49
|
مشخصات
-
RoHS:
true
-
Category:
ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
-
Datasheet:
Analog Devices AD5755ACPZ-REEL7
-
Interface:
SPI;DSP
-
Resolution:
16Bit
-
Output Type:
Voltage-缓冲;Current-非缓冲
-
Settling Time:
18us
-
Supply Voltage:
2.7V~5.5V
-
Integral nonlinearity:
±1LSB
-
Operating Temperature:
-40°C~+105°C
-
Package:
LFCSP-64-VQ(9x9)
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Number of Bits:
16
-
Number of D/A Converters:
4
-
Differential Output:
No
-
Data Interface:
SPI, DSP
-
Reference Type:
External, Internal
-
Voltage - Supply, Analog:
9V ~ 33V, -10.8V ~ 26.4V
-
Voltage - Supply, Digital:
2.7V ~ 5.5V
-
INL/DNL (LSB):
-, ±1 (Max)
-
Architecture:
R-2R
-
Package / Case:
64-VFQFN Exposed Pad, CSP
-
Supplier Device Package:
64-LFCSP-VQ (9x9)
-
Mounting Type:
Surface Mount
-
Base Part Number:
AD5755
-
detail:
16 Bit Digital to Analog Converter 4 64-LFCSP-VQ (9x9)
