دیتاشیت AD5755-1ACPZ-REEL7

AD5755-1

مشخصات دیتاشیت

نام دیتاشیت AD5755-1
حجم فایل 1638.984 کیلوبایت
نوع فایل pdf
تعداد صفحات 50

دانلود دیتاشیت AD5755-1

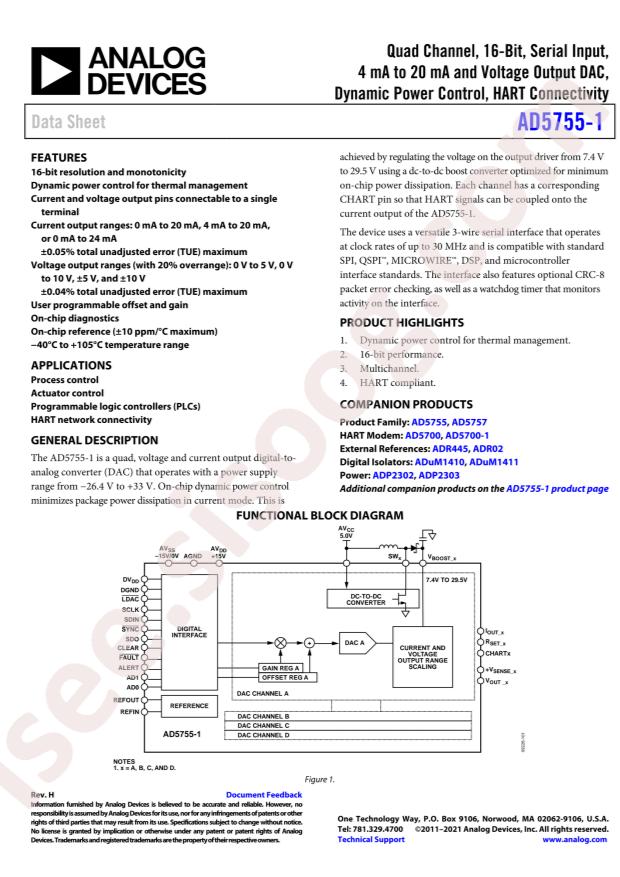

AD5755-1 Datasheet

مشخصات

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
  • Datasheet: Analog Devices AD5755-1ACPZ-REEL7
  • Interface: SPI;DSP
  • Resolution: 16Bit
  • Output Type: Current-非缓冲
  • Settling Time: 18us
  • Supply Voltage: 2.7V~5.5V
  • Integral nonlinearity: ±0.006LSB;±11LSB
  • Operating Temperature: -40°C~+105°C
  • Package: LFCSP-64
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Number of Bits: 16
  • Number of D/A Converters: 4
  • Differential Output: No
  • Data Interface: SPI, DSP
  • Reference Type: External, Internal
  • Voltage - Supply, Analog: 9V ~ 33V, -10.8V ~ 26.4V
  • Voltage - Supply, Digital: 2.7V ~ 5.5V
  • INL/DNL (LSB): ±0.006, ±11
  • Architecture: R-2R
  • Package / Case: 64-VFQFN Exposed Pad, CSP
  • Supplier Device Package: 64-LFCSP-VQ (9x9)
  • Mounting Type: Surface Mount
  • Base Part Number: AD5755
  • detail: 16 Bit Digital to Analog Converter 4 64-LFCSP-VQ (9x9)
