دیتاشیت AD7961BCPZ-RL7

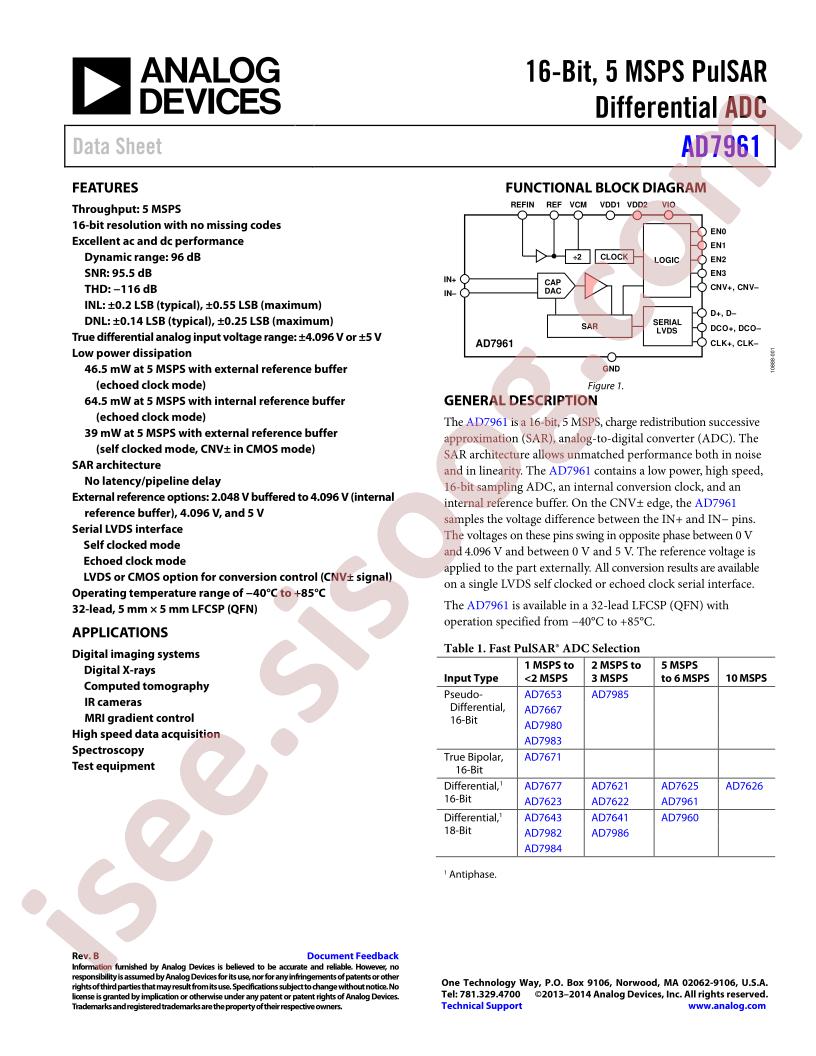

AD7961 Datasheet

مشخصات دیتاشیت

نام دیتاشیت AD7961 Datasheet
حجم فایل 549.255 کیلوبایت
نوع فایل pdf
تعداد صفحات 24

دانلود دیتاشیت AD7961 Datasheet

AD7961 Datasheet Datasheet

مشخصات

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
  • Datasheet: Analog Devices AD7961BCPZ-RL7
  • Interface: serial
  • resolution: 16
  • Supply Voltage: 5V
  • number of channels: 1
  • sampling frequency: 5MHz
  • Operating Temperature: -40°C~+85°C
  • Package: LFCSP-32
  • Manufacturer: Analog Devices
  • Series: PulSAR®
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Number of Bits: 16
  • Sampling Rate (Per Second): 5M
  • Number of Inputs: 1
  • Input Type: Differential
  • Data Interface: LVDS - Serial
  • Configuration: S/H-ADC
  • Ratio - S/H:ADC: 1:1
  • Number of A/D Converters: 1
  • Architecture: SAR
  • Reference Type: External
  • Voltage - Supply, Analog: 5V
  • Voltage - Supply, Digital: 5V
  • Features: -

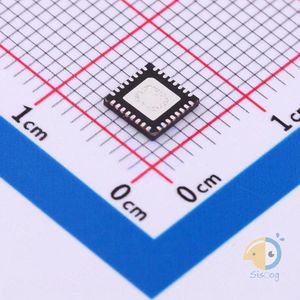

  • Package / Case: 32-WFQFN Exposed Pad, CSP
  • Supplier Device Package: 32-LFCSP-WQ (5x5)
  • Mounting Type: Surface Mount
  • Base Part Number: AD7961
  • detail: 16 Bit Analog to Digital Converter 1 Input 1 SAR 32-LFCSP-WQ (5x5)
