دیتاشیت LMX2434SLEX/NOPB

LMX2430, LMX2433, LMX2434

مشخصات دیتاشیت

نام دیتاشیت LMX2430, LMX2433, LMX2434
حجم فایل 3382.993 کیلوبایت
نوع فایل pdf
تعداد صفحات 53

دانلود دیتاشیت LMX2430, LMX2433, LMX2434

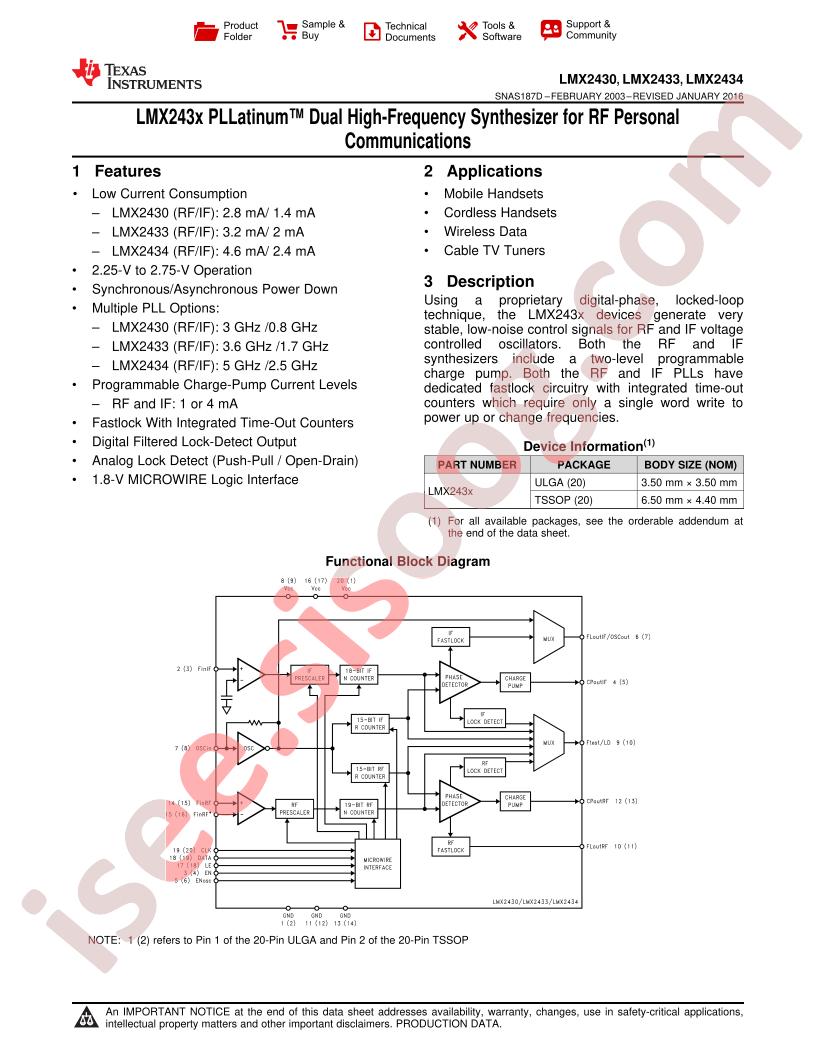

LMX2430, LMX2433, LMX2434 Datasheet

مشخصات

  • RoHS: true
  • Category: RTC/Clock Chip/Clock Generators / Frequency Synthesizers / PLL
  • Datasheet: Texas Instruments LMX2434SLEX/NOPB
  • Supply Voltage: 2.25V~2.75V
  • Operating Temperatue: -40°C~+85°C
  • Output Frequency (Max): 2.5GHz
  • Package: LGA-20(3.5x3.5)
  • Manufacturer: Texas Instruments
  • Series: PLLatinum™
  • Type: PLL Frequency Synthesizer
  • Package / Case: 20-UFLGA
  • Number of Circuits: 1
  • Output: CMOS
  • Part Status: Active
  • Input: CMOS
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C ~ 85°C
  • Ratio - Input:Output: 3:2
  • Frequency - Max: 5GHz, 2.5GHz
  • Voltage - Supply: 2.25V ~ 2.75V
  • PLL: Yes with Bypass
  • Packaging: Cut Tape (CT)
  • Base Part Number: LMX2434
  • Divider/Multiplier: No/No
  • Differential - Input:Output: Yes/No
  • Supplier Device Package: 20-ULGA (3.5x3.5)
  • detail: IC FREQ SYNTH DUAL 20LAMUCSP
