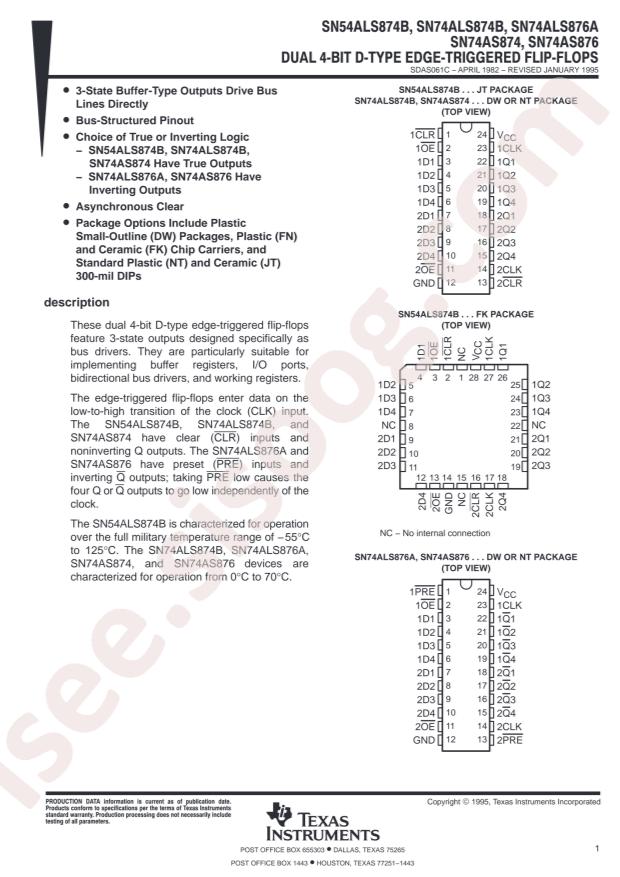

SN74ALS874BDWR دیتاشیت

SN74ALS874BDWR

مشخصات دیتاشیت

نام دیتاشیت SN74ALS874BDWR
حجم فایل 86.945 کیلوبایت
نوع فایل pdf
تعداد صفحات 15

دانلود دیتاشیت SN74ALS874BDWR

دانلود دیتاشیت

سایر مستندات

SN54ALS874B, SN74ALS874B/876A, SN74AS874/876 15 pages

مشخصات فنی

  • RoHS: true
  • Type: D-Type
  • Series: 74ALS
  • Category: Logic ICs/Flip Flops
  • Function: Reset
  • Datasheet: Texas Instruments SN74ALS874BDWR
  • Output Type: Tri-State;Non-Inverted
  • Sink Current: 24mA
  • Trigger Type: 上升沿
  • Source Current: 2.6mA
  • Supply Voltage: 4.5V~5.5V
  • Clock Frequency: 30MHz
  • Input Capacitance: -
  • Number of Elements: 2
  • Operating Temperature: 0°C~+70°C
  • Quiescent Current (Iq): 21mA
  • Maximum Propagation Delay: 14ns@5V,50pF
  • Number of Bits per Element: 4
  • Package: SOP-24-300mil
  • Manufacturer: Texas Instruments
  • Package / Case: 24-SOIC (0.295", 7.50mm Width)
  • Current - Output High, Low: 2.6mA, 24mA
  • Current - Quiescent (Iq): 21mA
  • Part Status: Active
  • Mounting Type: Surface Mount
  • Max Propagation Delay @ V, Max CL: 14ns @ 5V, 50pF
  • Voltage - Supply: 4.5V ~ 5.5V
  • Packaging: Tube
  • Base Part Number: SN74ALS8
  • Supplier Device Package: 20-SOIC
  • detail: Flip Flop 2 Element D-Type 4 Bit Positive Edge 24-SOIC (0.295", 7.50mm Width)
