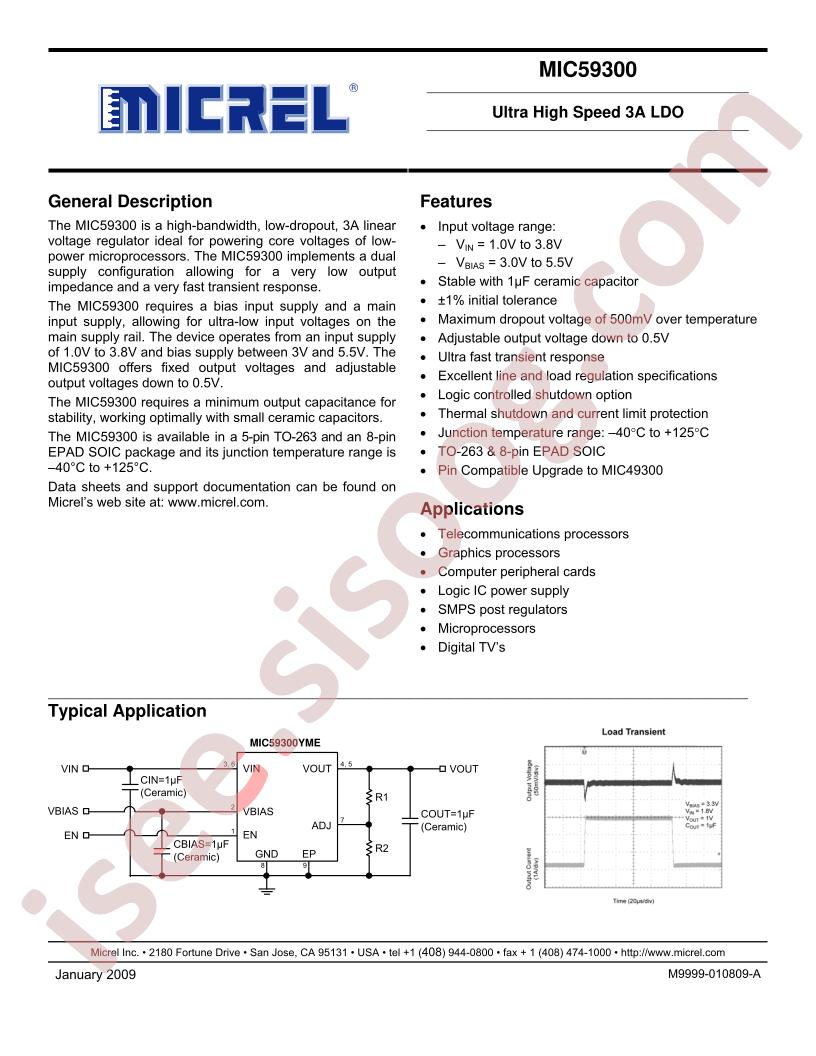

دیتاشیت MIC59300-1.2WU
مشخصات دیتاشیت
| نام دیتاشیت |
MIC59300
|
| حجم فایل |
450.477
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
15
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
Microchip Tech MIC59300-1.2WU
-
Output Current:
3A
-
Output Voltage:
1.2V
-
Dropout Voltage:
0.5V@(3A)
-
Output Polarity:
positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
3.8V
-
Operating Temperature:
-40°C~+125°C
-
Package:
TO-263-5
-
Manufacturer:
Microchip Tech
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Output Configuration:
Positive
-
Output Type:
Fixed
-
Number of Regulators:
1
-
Voltage - Input (Max):
3.8V
-
Voltage - Output (Min/Fixed):
1.2V
-
Voltage - Output (Max):
-
-
Voltage Dropout (Max):
0.5V @ 3A
-
Current - Output:
3A
-
PSRR:
65dB ~ 55dB (10kHz)
-
Control Features:
Enable
-
Protection Features:
Over Current, Over Temperature
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
-
Supplier Device Package:
TO-263-5
-
Base Part Number:
MIC59300
-
detail:
Linear Voltage Regulator IC 1 Output 3A TO-263-5
